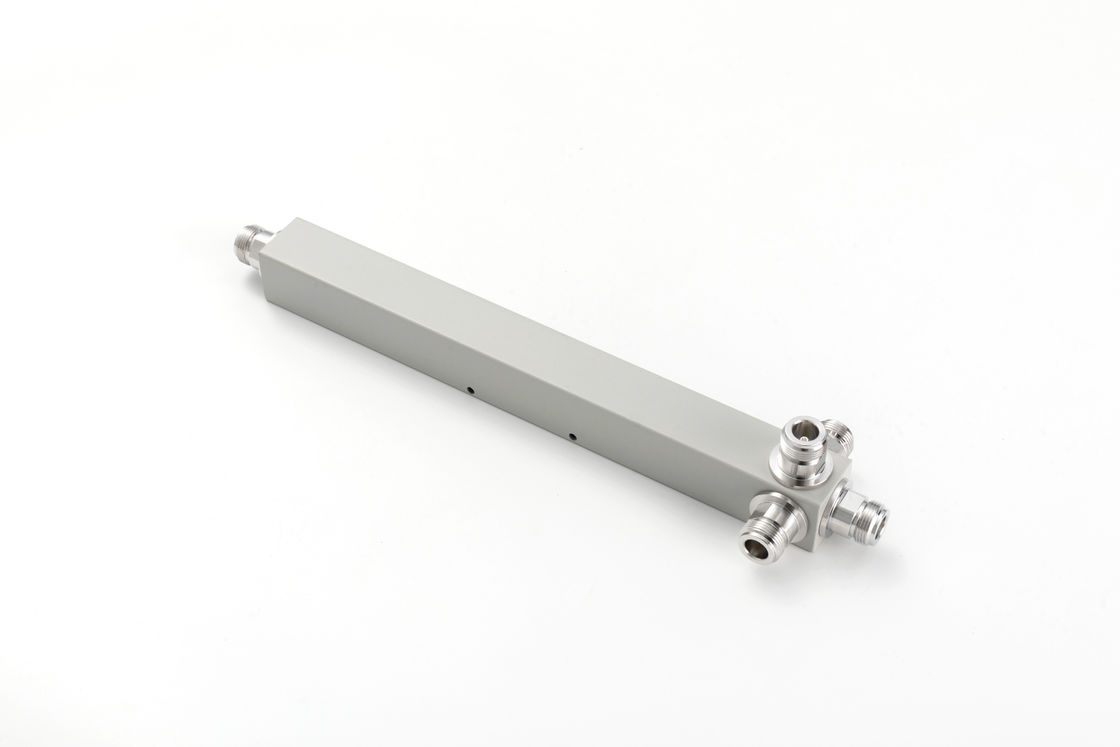

698-2700MHz N Female Power Splitter

Name: 698-2700MHz N Female Power Splitter
Brand: Vinncom
SKU: VN-PS-0727-ON
Rating: 4.7 (152 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PS-0727-ON

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    -161 Reactive Power Splitter, 2700MHz Reactive Power Splitter, PIM active rf splitter


Interface:	N Female	Handling Power (Watt, Max):	300
VSWR:	≤1.25	Operating Frequency ( MHz ):	698-2700
Impedance ( Ohm ):	50	IM3 (dBc @ 2×43dBm):	-150 / -155 / -161 / -165

Interface:	N Female
Handling Power (Watt, Max):	300
VSWR:	≤1.25
Operating Frequency ( MHz ):	698-2700
Impedance ( Ohm ):	50
IM3 (dBc @ 2×43dBm):	-150 / -155 / -161 / -165

Description

698-2700MHz N Female Power Splitter

698-2700MHz N Female Power Splitter PIM -150 / -155 / -161 / -165

Good VSWR at all ports
High power handling splitters
Wide band frequency

VN-PS-0727-ON2-S-xxx.pdf VN-PS-0727-ON3-S-xxx.pdf VN-PS-0727-ON4-S-xxx.pdf

Part Number	VN-PS-0727-ONx
Operating Frequency ( MHz )	698-2700
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤3.3	≤5.1	≤6.4
IM3 (dBc @ 2×43dBm)	-150 / -155 / -161 / -165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	197 × 25 × 25	234 × 25 × 25	235 × 25 × 25
Net Weight (g)	340± 20	425 ± 20	460 ± 20
Packing Dimensions (mm,L×W×H)	240 × 80 × 35	280 × 80 × 35	280 × 80 × 35
Packing Carton Size (mm,L×W×H)	540× 420 × 160	580× 420 × 160	580× 410 × 140

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
