DAS IBS Mini Din Female 138-960MHz Wideband Power Divider

Name: DAS IBS Mini Din Female 138-960MHz Wideband Power Divider
Brand: Vinncom
SKU: VN-PD-013096-OP2
Rating: 5 (196 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PD-013096-OP2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            960MHz wideband power divider, DAS IBS wideband power divider, Mini Din Female wideband splitter


Frequency:	138-960MHz 130-960MHz	Connector:	4.3-10 Mini DIN Female
Color:	Customized	OEM/ODM:	Acceptable
Application:	DAS IBS Public Safety	ROHS:	Compliance
Design:	Wide Band

Frequency:	138-960MHz 130-960MHz
Connector:	4.3-10 Mini DIN Female
Color:	Customized
OEM/ODM:	Acceptable
Application:	DAS IBS Public Safety
ROHS:	Compliance
Design:	Wide Band

Description

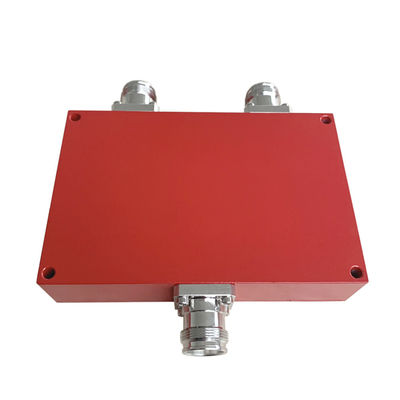

DAS IBS Mini Din Female 138-960MHz Wideband Power Divider

138-960MHz 4.3-10 Mini DIN Female 2 Way Wilkinson Power Divider For Public Safety DAS IBS

High isolation
Good VSWR
Less split loss

Part Number	VN-PD-013096-OP2
Operating Frequency ( MHz )	138-960
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤3.6
Isolation (dB)	≥18
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	50(2w as combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	136.2 × 90.6× 29
Net Weight (g)	830 ± 20
Packing Dimensions (mm,L×W×H)	210 × 170 × 65
Packing Carton Size (mm,L×W×H)	530 × 440 × 80
ROHS Compliance	Yes

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz .

Customized products also are welcomed.
