130 To 960MHz 4.3-10 Female Wideband Wilkinson Power Divider
  • name
  • name
  • name
  • name

130 To 960MHz 4.3-10 Female Wideband Wilkinson Power Divider

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-013096-OP3
Frequency:
138-960MHz 130-960MHz
Connector:
4.3-10 Mini DIN Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Highlight:

4.3-10 Female Wideband Wilkinson Power Divider

,

900MHz Wideband Wilkinson Power Divider

,

130MHz 3 way rf splitter

Product Description

138-960MHz 4.3-10 Mini DIN Female  3 Way Wilkinson Power Divider For Public Safety DAS IBS



  • Less Insertion Loss
  • Good VSWR at all ports
  • High isolation



Part Number VN-PD-013096-OP3
Operating Frequency ( MHz ) 138-960
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤5.8
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 50(2w as combiner)
Peak Power (Watt, max) 200
   Dimension (mm)(L×W×H, excl connector)    155 × 127.7× 29
Net Weight (g) 1230± 20
Packing Dimensions (mm,L×W×H) 210 × 170 × 65
Packing Carton Size (mm,L×W×H) 530 × 440 × 80
ROHS Compliance Yes

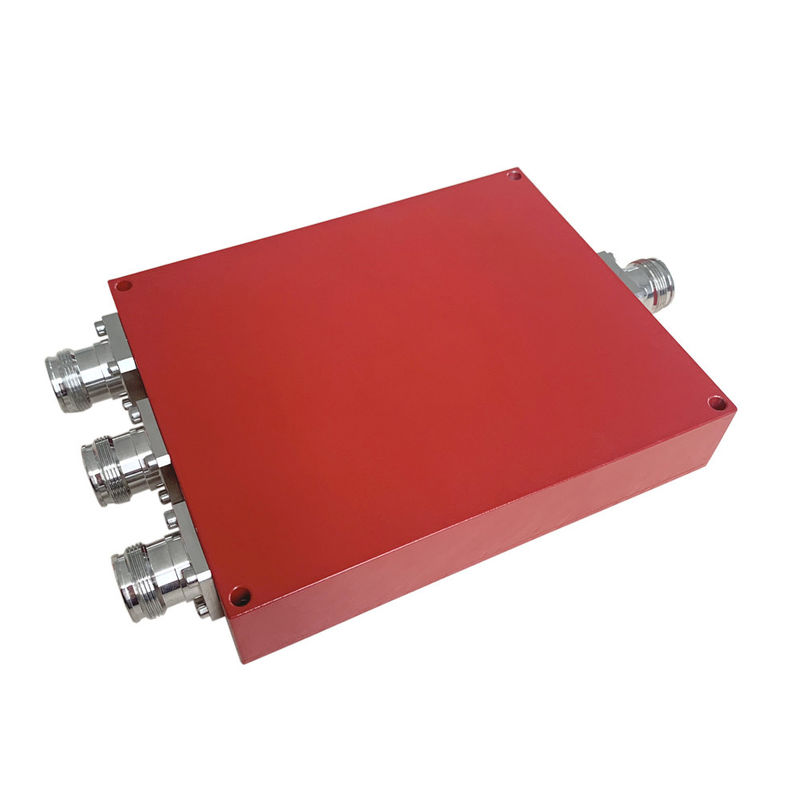

130 To 960MHz 4.3-10 Female Wideband Wilkinson Power Divider 0



Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
