138-960MHz Din Female Low PIM 4 Way Power Divider
  • name
  • name
  • name
  • name

138-960MHz Din Female Low PIM 4 Way Power Divider

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-013096-OP4
Frequency:
138-960MHz 130-960MHz
Connector:
4.3-10 Mini DIN Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Highlight:

138-960MHz Low PIM 4 Way Power Divider

,

IBS 960MHz 4 Way Power Divider

,

IBS IP65 4 way splitter

Product Description

138-960MHz 4.3-10 Mini DIN Female  4 Way Wilkinson Power Divider For Public Safety DAS IBS



  • Good VSWR at all ports
  • Less Insertion Loss
  • Low split loss



Part Number VN-PD-013096-OP4
Operating Frequency ( MHz ) 138-960
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤7
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 50(2w as combiner)
Peak Power (Watt, max) 200
   Dimension (mm)(L×W×H, excl connector)    156.3×151.2 × 29
Net Weight (g) 1500 ± 20
Packing Dimensions (mm,L×W×H) 210 × 170 × 65
Packing Carton Size (mm,L×W×H) 530 × 440 × 80
ROHS Compliance Yes

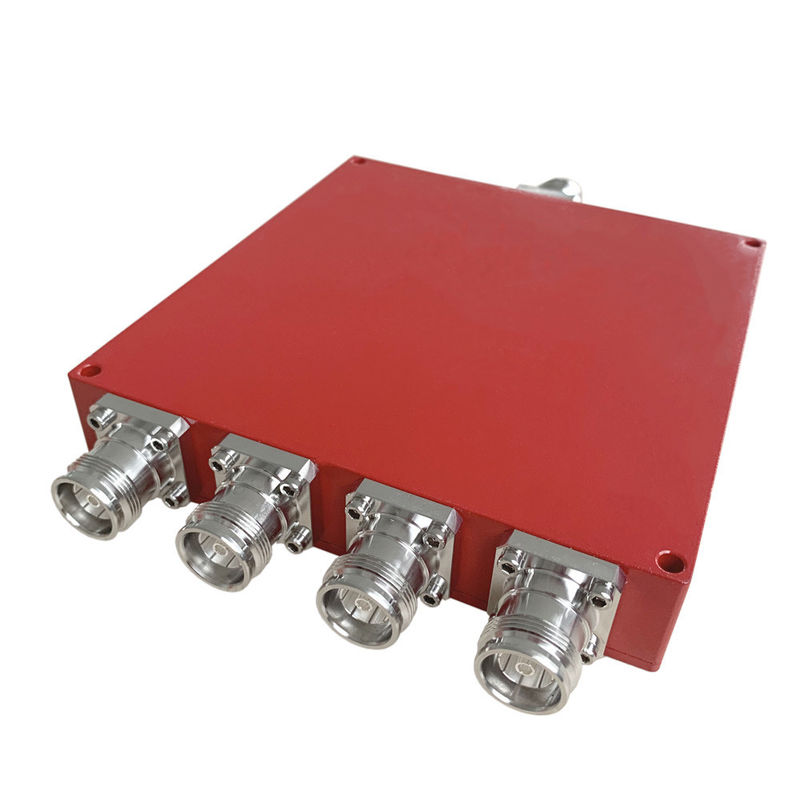

138-960MHz Din Female Low PIM 4 Way Power Divider 0



Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
