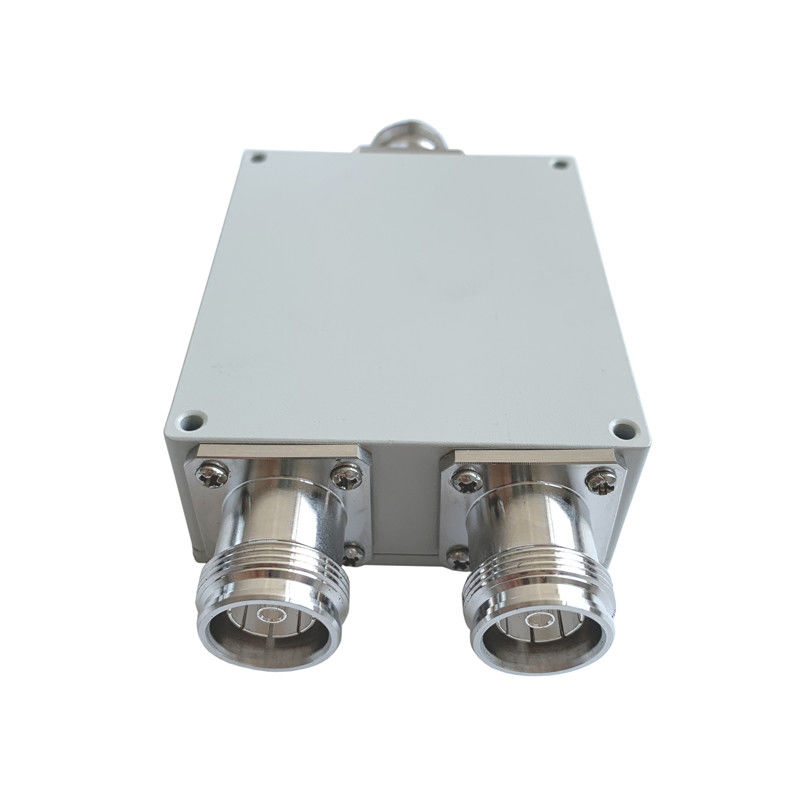

550-2700MHz 2Way 4.3-10 Female Wilkinson Splitter

Name: 550-2700MHz 2Way 4.3-10 Female Wilkinson Splitter
Brand: Vinncom
SKU: VN-PD-05527-OP2
Rating: 4.9 (136 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PD-05527-OP2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            4.3-10 Female 2 Way Power Divider, 2700MHz 2 Way Power Divider, 200W 2 way power splitter


Frequency:	550-2700MHz 698-2700MHz	Connector:	4.3-10 Mini Din Female
Color:	Customized	OEM/ODM:	Acceptable
Application:	DAS IBS Public Safety	ROHS:	Compliance
Design:	Wide Band

Frequency:	550-2700MHz 698-2700MHz
Connector:	4.3-10 Mini Din Female
Color:	Customized
OEM/ODM:	Acceptable
Application:	DAS IBS Public Safety
ROHS:	Compliance
Design:	Wide Band

Description

550-2700MHz 2Way 4.3-10 Female Wilkinson Splitter

550-2700MHz 4.3-10 Mini Female 2Way Wilkinson Power Divider For Commercial DAS IBS

High isolation
Wide band frequency
Good VSWR

VN-PD-05527-OP2.pdf

Part Number	VN-PD-05527-OP2
Operating Frequency ( MHz )	550-2700
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤3.5
Isolation (dB)	≥18
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	50(2w as combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	79.5× 67× 29.5
Net Weight (g)	425± 20
Packing Dimensions (mm,L×W×H)	190 × 80 × 45
Packing Carton Size (mm,L×W×H)	430 × 400 × 105
ROHS Compliance	Yes

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
