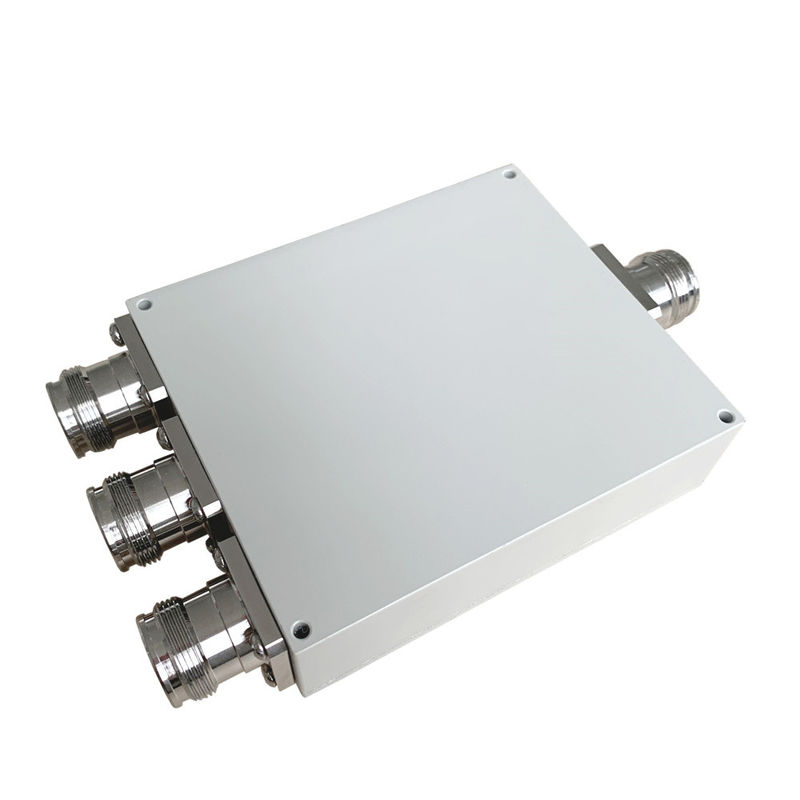

550-2700MHz 3Way 4.3-10 Female Wilkinson Splitter
  • name
  • name
  • name
  • name

550-2700MHz 3Way 4.3-10 Female Wilkinson Splitter

MOQ: 20pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PS-05527-OP3
Frequency:
550-2700MHz 698-2700MHz
Connector:
4.3-10 Mini Din Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
Highlight:

550-2700MHz Wilkinson Power Divider

,

-153dBc Wilkinson Power Divider

,

3 Way wilkinson power splitter

Product Description

550-2700MHz 4.3-10 Mini Female Low PIM -153dBc -160dBc 3 Way Wilkinson Power Divider For Commercial DAS IBS



  • Low PIM up to -165dBc@43dBm*2
  • Good VSWR at all ports
  • High isolation

Part Number VN-PD-05527-OP3
Operating Frequency ( MHz ) 550-2700
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤5.8
Isolation (dB) ≥18
IM3 (dBc @ 2×43dBm) -153
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 50(2w as combiner)
Peak Power (Watt, max) 200
   Dimension (mm)(L×W×H, excl connector)    104.3× 90× 29
Net Weight (g) 670± 20
Packing Dimensions (mm,L×W×H) 170 × 100 × 40
Packing Carton Size (mm,L×W×H) 520 × 360 × 105
ROHS Compliance Yes









550-2700MHz 3Way 4.3-10 Female Wilkinson Splitter 0
