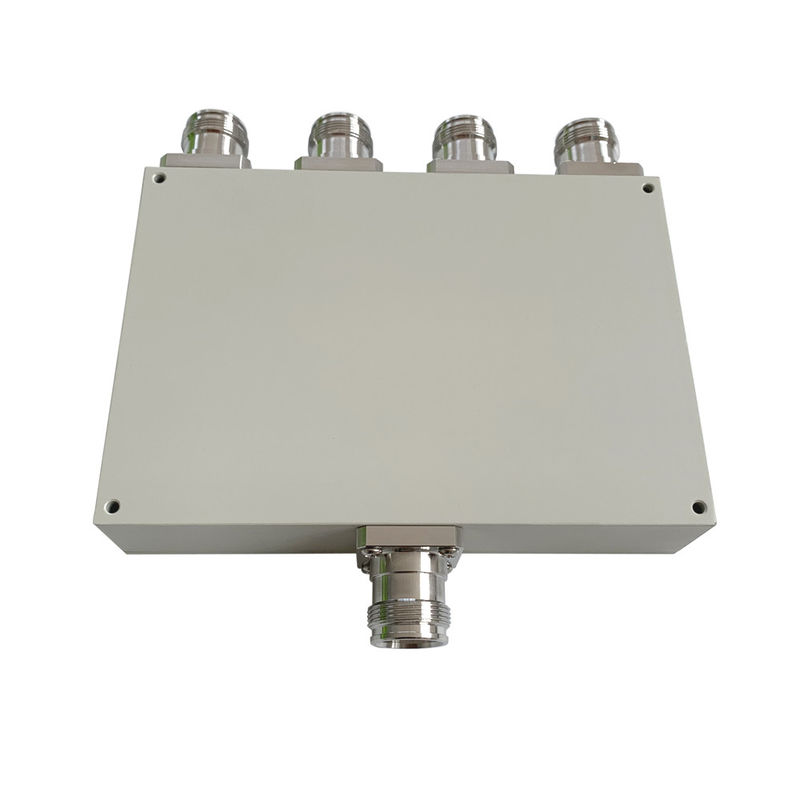

550-2700MHz 4Way 4.3-10 Female Wilkinson Splitter
  • name
  • name
  • name
  • name

550-2700MHz 4Way 4.3-10 Female Wilkinson Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-05527-OP4
Frequency:
550-2700MHz 698-2700MHz
Connector:
4.3-10 Mini Din Female
Color:
Customized
OEM/ODM:
Acceptable
Low PIM:
-153dbc,-160dbc
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
Highlight:

550 to 2700MHz Wilkinson Power Divider

,

Low PIM Wilkinson Power Divider

,

-160dBc stripline power divider

Product Description

550-2700MHz 4.3-10 Mini Female Low PIM -153dBc -160dBc 4 Way Wilkinson Power Divider For Commercial DAS IBS



  • Low PIM up to -153dBc@43dBm*2
  • Good VSWR at all ports
  • High isolation



   VN-PD-05527-OP4.pdf

Part Number VN-PD-05527-OP4
Operating Frequency ( MHz ) 550-2700
Impedance ( Ohm ) 50
VSWR ≤1.3
Split Loss (dB) ≤7
Isolation (dB) ≥18
IM3 (dBc @ 2×43dBm) -153
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 50
Peak Power (Watt, max) 200(2w as combiner)
   Dimension (mm)(L×W×H, excl connector)    146×103× 29
Net Weight (g) 1055±20
Packing Dimensions (mm,L×W×H) 225X160X35
Packing Carton Size (mm,L×W×H) 330X230X15
ROHS Compliance Yes









550-2700MHz 4Way 4.3-10 Female Wilkinson Splitter 0
