Unequal WPD Wilkinson Resistive RF Splitter N Way Power Divider 50W

MOQ:	5 pcs
Price:	Negotiable
Payment Method:	D/A, L/C, D/P, T/T
Supply Capacity:	1500pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ROHS ISO9000

Model Number

VN-PD-05540-ON2

Frequency:

550-4000MHz 698-4000MHz

Connector:

N Female

Color:

Customized

OEM/ODM:

Acceptable

Application:

DAS IBS Public Safety

ROHS:

Compliance

Design:

Wide Band

Highlight:

Unequal resistive rf splitter

WPD resistive rf splitter

Unequal n way power divider

Product Description

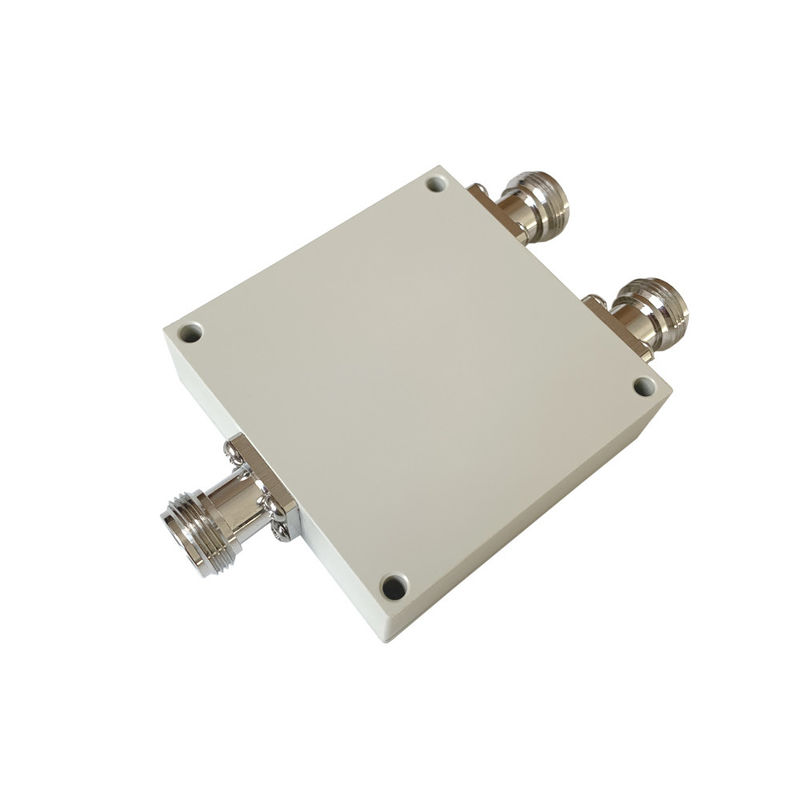

550-4000MHz 698-4000MHz N Female 2 Way Wilkinson Power Divider For Commercial DAS IBS

Good VSWR
High isolation
Low split loss

Part Number	VN-PD-05540-ON2
Operating Frequency ( MHz )	550-4000
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤3.7
Isolation (dB)	≥18
/	/
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-25 ~ + 85
Interface	N Female
Average Power (Watt, max)	50(Power dividers) / 2(combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	67.9 × 67.7× 21
Net Weight (g)	250 ± 20
Packing Dimensions (mm,L×W×H)	180× 75 × 30
Packing Carton Size (mm,L×W×H)	400 ×380 × 170
ROHS Compliance	Yes

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
