-153dbc 3 Way Microstrip Power Divider RF Splitter For DAS

Name: -153dbc 3 Way Microstrip Power Divider RF Splitter For DAS
Brand: Vinncom
SKU: VN-PD-05540-OP3
Rating: 4.9 (140 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-PD-05540-OP3

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            -153dbc  microstrip power divider, DAS microstrip power divider, DAS rf splitter 3 way


Frequency:	550-4000MHz 698-4000MHz	Connector:	4.3-10 Mini Din Female
Color:	Customized	OEM/ODM:	Acceptable
Application:	DAS IBS Public Safety	ROHS:	Compliance
Design:	Wide Band

Frequency:	550-4000MHz 698-4000MHz
Connector:	4.3-10 Mini Din Female
Color:	Customized
OEM/ODM:	Acceptable
Application:	DAS IBS Public Safety
ROHS:	Compliance
Design:	Wide Band

Description

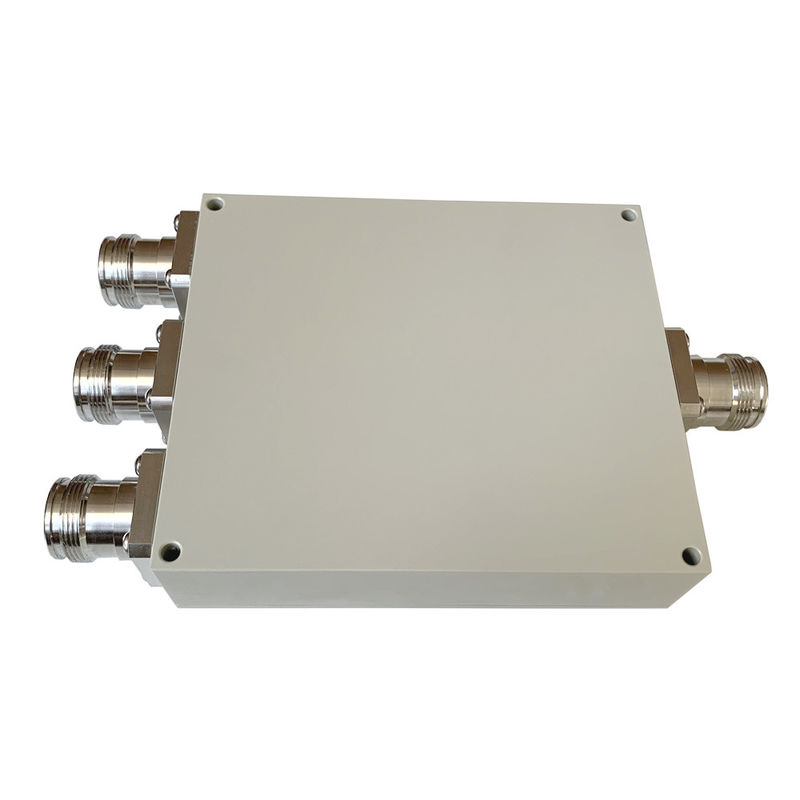

-153dbc 3 Way Microstrip Power Divider RF Splitter For DAS

550-4000MHz 698-4000MHz 4.3-10 Mini Female 3 Way Wilkinson Power Divider For Commercial DAS IBS

Good VSWR
Wide band frequency
High isolation

Part Number	VN-PD-05540-OP3
Operating Frequency ( MHz )	550-4000
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤6.0
Isolation (dB)	≥18
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-25 ~ + 85
Interface	4.3-10 Female
Average Power (Watt, max)	50(Power dividers) / 2(combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	118× 102.7× 29
Net Weight (g)	850±20
Packing Dimensions (mm,L×W×H)	175×110×50
Packing Carton Size (mm,L×W×H)	570×360×120
ROHS Compliance	Yes

Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
