200W HF Wilkinson Antenna Power Divider 550-4000MHz ROHS Certificated
  • name
  • name
  • name
  • name

200W HF Wilkinson Antenna Power Divider 550-4000MHz ROHS Certificated

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-05540-OP2
Frequency:
550-4000MHz 698-4000MHz
Connector:
4.3-10 Mini Din Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS Public Safety
ROHS:
Compliance
Design:
Wide Band
Highlight:

HF Antenna Power Divider

,

200W Antenna Power Divider

,

200W hf power splitter

Product Description

550-4000MHz 698-4000MHz 4.3-10 Mini Female  2 Way Wilkinson Power Divider For Commercial DAS IBS



  • Wide band frequency
  • High isolation
  • Good VSWR



Part Number VN-PD-05540-OP2
Operating Frequency ( MHz ) 550-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤3.7
Isolation (dB) ≥18
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -25~ + 85
Interface 4.3-10 Female
Average Power (Watt, max) 50(Power dividers) / 2(combiner)
Peak Power (Watt, max) 200
   Dimension (mm)(L×W×H, excl connector)    67.9× 67.7× 29
Net Weight (g) 450± 20
Packing Dimensions (mm,L×W×H) 190 × 80 × 45
Packing Carton Size (mm,L×W×H) 430 × 400 × 105
ROHS Compliance Yes

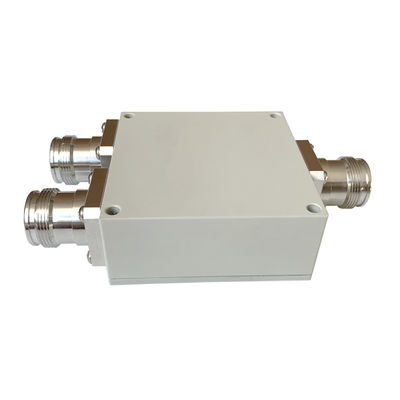

200W HF Wilkinson Antenna Power Divider 550-4000MHz ROHS Certificated 0




Wilkinson Power Divider (WPD) is a specific class of power divider circuit that can achieve isolation between the output ports while maintaining a matched condition on all ports. The Wilkinson design can also be used as a power combiner, the high degree of isolation between the output ports prevents cross talk between the individual channels which can be easily fabricated as quarter wave lines on circult. WPD also can be unequally divided the input power based on different usage ,.

Vinncom WPD has widely frequency range to 40GHZ ,and for sub-6Ghz

Customized products also are welcomed.
