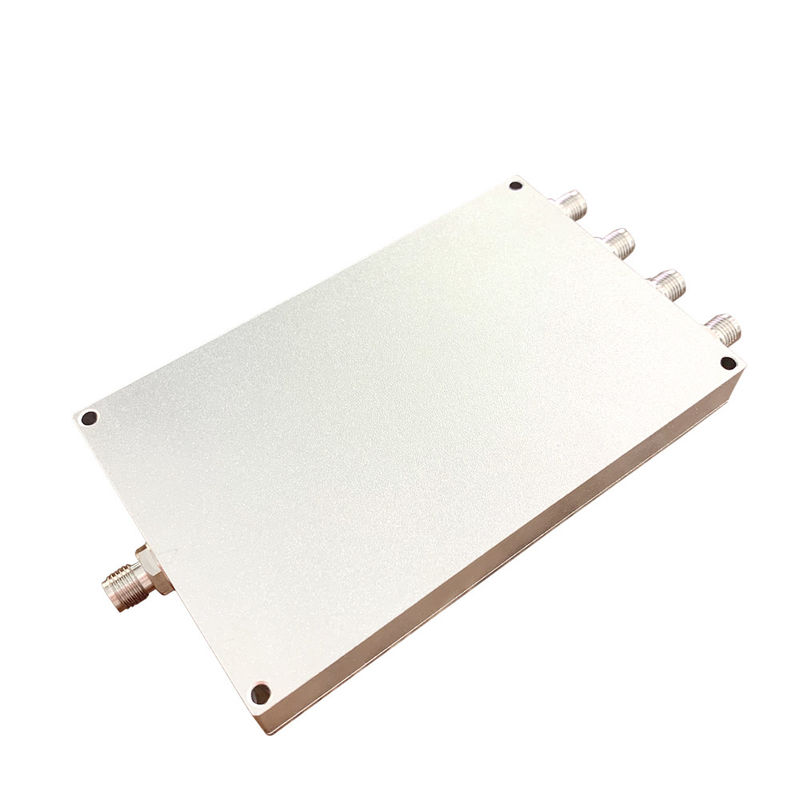

500MHz-6000MHz 4 Way Wilkinson Antenna Power Divider Combiner

MOQ:	5 pcs
Price:	negotiation
Standard Packaging:	box/carton
Delivery Period:	depends on your quantity
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	200pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

VINNCOM

Certification

ISO9000 RoHS

Model Number

VN-PD-0560-IS4

Operating Frequency ( MHz ):

500-6000

Impedance( Ohm ):

VSWR(Input Port):

VSWR(Output Port):

≤1.20

Insertion Loss:

≤1.8(SMA)

Average Power (Watt Max.):

30(Used As A Splitter) 2(Used As A Combiner)

Isolation(dB):

Amplitude Balance(dB):

±0.3(SMA)

Phase Balance(dB):

±4°（SMA)

Interface:

SMA Female(IS4)

Highlight:

500MHz Antenna Power Divider

6000MHz Antenna Power Divider

Wilkinson power divider combiner

Product Description

500-6000MHz Wilkinson SMA Female 4 Way Power Divider/Combiner

Good VSWR
Less Insertion Loss
Wide band frequency

Part Number	VN-PD-0560-IS4
Operating Frequency ( MHz )	500-6000
Impedance( Ohm )	50
VSWR(Input Port)	≤1.3
VSWR(Output Port)	≤1.20
Insertion loss	≤1.8(SMA)
Average Power (Watt max.)	30(Used as a Splitter) 2(Used as a Combiner)
Isolation(dB)	≥20
Amplitude Balance(dB)	±0.3(SMA)
Phase Balance(dB)	±4°(SMA)
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	SMA Female(IS4)
Dimensions(mm,L×W×H,excl connector)	100×62×12
Dimension Tolerance(mm)	±0.5
Mounting	4-Φ2.8mm through-hole

Package And Delivery

FAQ

Q:Could you supply the sample for me to test first?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terma of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.
