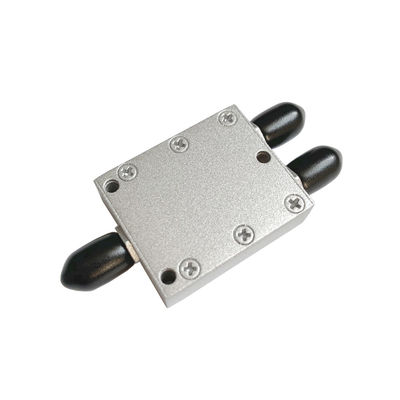

High Frequency Wilkinson RF Antenna Power Splitter Combiner 3500mhz -9000mhz
  • name
  • name
  • name
  • name
  • name
  • name

High Frequency Wilkinson RF Antenna Power Splitter Combiner 3500mhz -9000mhz

MOQ: 5pcs
Price: negotiable
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS
Model Number
VN-PD-3590-OSF2
Operating Frequency ( MHz ):
3500-9000
Insertion Loss:
0.6dB Max
Input VSWR:
1.25 Max
Output VSWR:
1.2 Max
Isolation:
20dB Min
Amplitude Balance:
0.2dB Max
Highlight:

Wilkinson antenna power splitter

,

3500mhz antenna power splitter

,

wilkinson power combiner Splitter

Product Description

High Frequency 3500-9000MHz 2 Way Power Divider/Combiner With SMA Female Connector


  • Good VSWR
  • High isolation
  • Wide band frequency



Part Number VN-PD-3590-OSF2
Operating Frequency ( MHz ) 3500-9000
Insertion Loss 0.6dB max
Input VSWR 1.25 max
Output VSWR 1.2 max
Isolation 20dB min
Amplitude Balance 0.2dB max
Phase Balance ±3°
Impedance ( Ohm ) 50
Average Power 30W max./2W max. as combiner
Size 34*28*10mm
Weight 26g
Connectors SMA Female
Operation Temperature -45~+85℃









High Frequency Wilkinson RF Antenna Power Splitter Combiner 3500mhz -9000mhz 0High Frequency Wilkinson RF Antenna Power Splitter Combiner 3500mhz -9000mhz 1





Company Profile

High Frequency Wilkinson RF Antenna Power Splitter Combiner 3500mhz -9000mhz 2



Product Application

High Frequency Wilkinson RF Antenna Power Splitter Combiner 3500mhz -9000mhz 3
FAQ

Q:Could you supply the sample for me to test first?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terma of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.




Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
