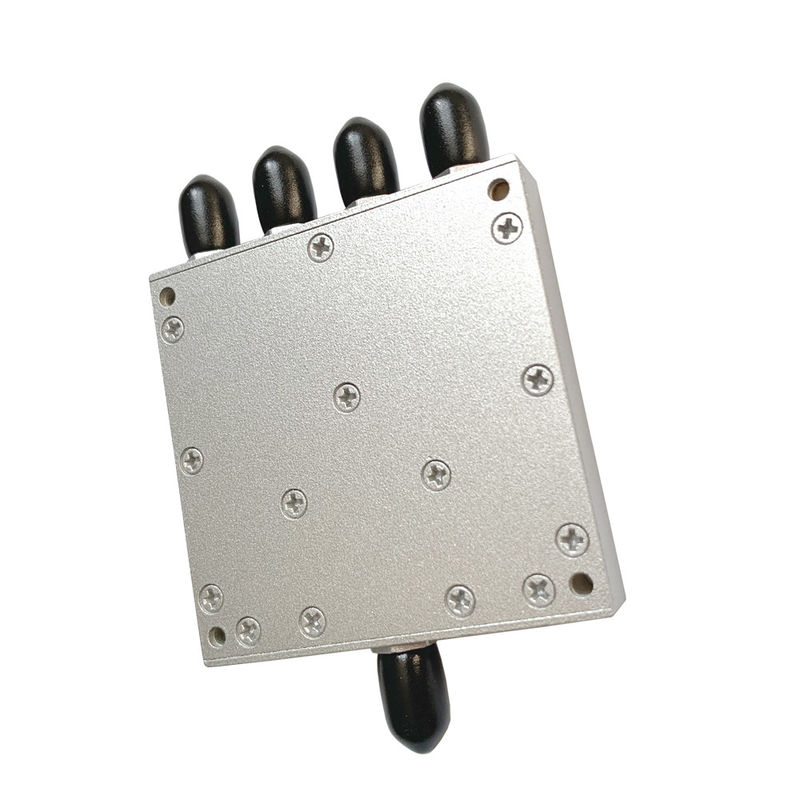

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision
  • name
  • name
  • name
  • name
  • name
  • name

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision

MOQ: 5pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO9000 RoHS
Model Number
VN-PD-2184-OSF-4
Operating Frequency ( MHz ):
2100-8400
Insertion Loss:
1.8dB Max.
Input VSWR:
1.4 Max.
Output VSWR:
1.3 Max.
Isolation:
18dB Min
Amplitude Balance:
0.3dB Max.
Phase Balance:
±4°
Impedance ( Ohm ):
50
Highlight:

8400MHz Antenna Power Divider

,

High Precision Antenna Power Divider

,

8400MHz 4 way divider

Product Description

2100-8400MHz 4 Way Power Divider/Combiner SMA Female



  • Wide band frequency
  • Good VSWR at all ports
  • Good Flatness



Part Number VN-PD-2184-OSF-4
Operating Frequency ( MHz ) 2100-8400
Insertion Loss 1.8dB max.
Input VSWR 1.4 max.
Output VSWR 1.3 max.
Isolation 18dB min.
Amplitude Balance 0.3dB max.
Phase Balance ±4°
Impedance ( Ohm ) 50
Average Power 30W max./2W max. as combiner
Size 56*56*10mm
Weight 32g
Connectors SMA Female
Operation Temperature -45~+85℃









8400MHz Female SMA 4 Way Antenna Power Divider With High Precision 08400MHz Female SMA 4 Way Antenna Power Divider With High Precision 1





Our Factory

We are an integrated industry and trade company

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision 2

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision 3

Our Package

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision 4

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision 5

8400MHz Female SMA 4 Way Antenna Power Divider With High Precision 6



FAQ

Q:Could you supply the sample for me to test first?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.






Welcom to enquiry
