Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz

Name: Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz
Brand: Vinncom
SKU: VN-PD-320180-OSF2
Rating: 4.7 (158 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO9000 RoHS

Model Number: VN-PD-320180-OSF2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: box/carton

Delivery Time: depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2000MHz microstrip wilkinson power divider, RF microstrip wilkinson power divider, Wilkinson divider rf


Operating Frequency ( MHz ):	3500-18000	Insertion Loss:	1dB Max
Input VSWR:	1.4 Max.	Output VSWR:	1.3 Max
Isolation:	18dB Min.	Amplitude Balance:	0.3dB Max.
Phase Balance:	±4°	Impedance ( Ohm ):	50

Operating Frequency ( MHz ):	3500-18000
Insertion Loss:	1dB Max
Input VSWR:	1.4 Max.
Output VSWR:	1.3 Max
Isolation:	18dB Min.
Amplitude Balance:	0.3dB Max.
Phase Balance:	±4°
Impedance ( Ohm ):	50

Description

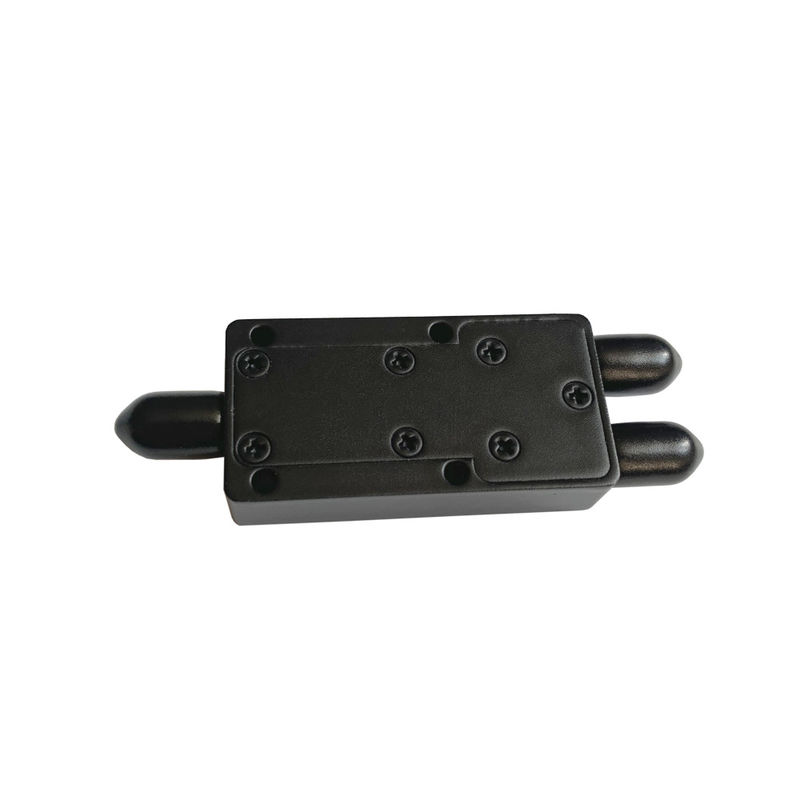

Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz

2000-18000MHz SMA Female Microwave Stripe 2 Way Power Divider/Combiner

Wide band frequency
Good VSWR
High isolation

Part Number	VN-PD-35180-OSF2
Operating Frequency ( MHz )	3500-18000
Insertion Loss	1dB max
Input VSWR	1.4 max.
Output VSWR	1.3 max
Isolation	18dB min.
Amplitude Balance	0.3dB max.
Phase Balance	±4°
Impedance ( Ohm )	50
Average Power	20W max./1W max. as combiner
Size	472410mm
Weight	32g
Connectors	SMA Female
Operation Temperature	-45~+85℃

Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz 0

Our Company

Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz 2

Product Application

Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz 3

Package & Delivery

Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz 4

Microwave Microstrip Wilkinson Power Divider RF 2000MHz -18000MHz 5

FAQ

Q:Could you supply the sample for me to test first?
A:We are honored to offer you samples. New clients are expected to pay for courier cost,we can make samples according to your need.

Q.What is your delivery time?
A: This depends on what kind of products you ordered. Like SMA, delivery time may within 20-30 DAYS

Q.Can you do OEM or ODM?
A: Yes, OEM and ODM are welcomed.

Q.How does your factory do regarding quality control?
A1:In our factory, we have Specialized quality inspection personnel, they will check the products quality in each process;
A2: Skillful workers care every details in handling the producing and packing processes.

Q. What's your payment way?
1).We accept West Union/T T.
2).Payment must be made within 3 days of order.The terms of payment are negotiable.

Q. How about the shipping?
A: For small orders, we will send the goods by international Express like FedEx, DHL, TNT , UPS or EMS, usually it takes 5-7 work days to arrive. It is a little expensive. If the order quantity is large, we will ship by sea and arrival time depends on
different regions. If urgent, you could select transport by Air, but freight charge will be more expensive.

Q: What is the MOQ of your products?
A: It depends on different products.

Welcome to inquiry
