Ultrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4G

Ultrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4G

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-2.4G-OS2
Operating Frequency ( GHz ):
DC-2.4G
Impedance( Ohm ):
50
VSWR(Input Port):
≤1.20
VSWR(Output Port):
≤1.20
Insertion Loss:
≤6±0.5
Average Power (Watt Max.):
2W
Isolation(dB):
≥6
Amplitude Balance(dB):
±0.5
Highlight:

Ultrawideband Antenna Power Divider

,

3 Way Antenna Power Divider

,

Antenna 3 way rf combiner

Product Description

DC-2.4G 2 Way SMA Female Connector Resistive Power Divider



  • Good VSWR
  • Wide band frequency
  • Less Insertion Loss



Part Number VN-PD-2.4G-OS2
Operating Frequency ( GHz ) DC-2.4G

Impedance( Ohm )

50

VSWR(Input Port)

≤1.20

VSWR(Output Port)

≤1.20

Insertion loss ≤6±0.5
Average Power (Watt max.) 2W

Isolation(dB)

≥6

Amplitude Balance(dB)

±0.5

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

SMA Female

   Dimensions(mm,L×W×H,excl connector)

24.2*28*13.5

Dimension Tolerance(mm)

±0.5

Mounting

3-M2.5, depth 5mm

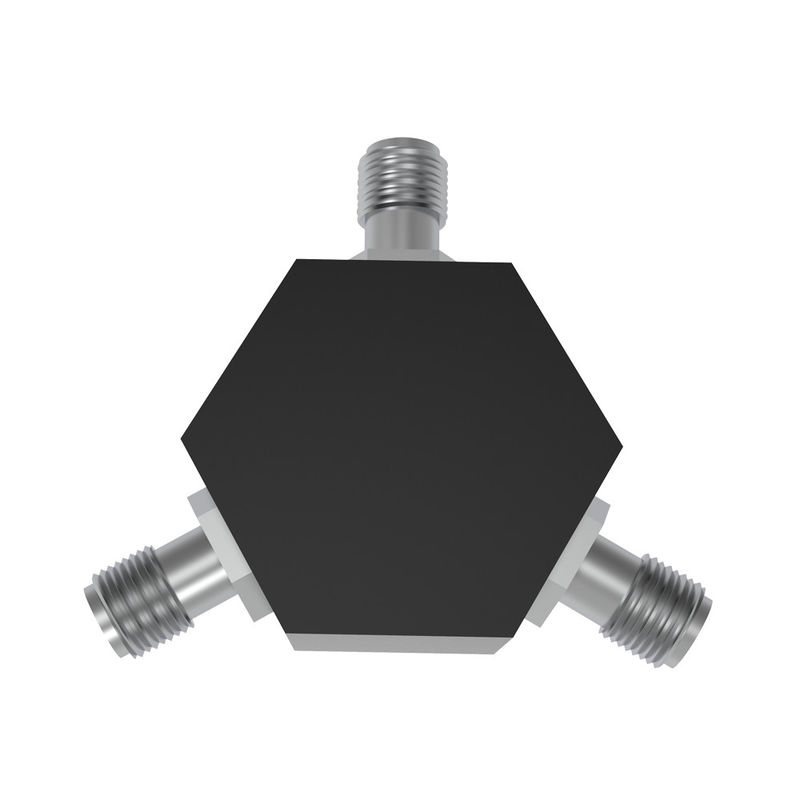

Ultrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4G 0Ultrawideband SMA Antenna Power Divider 3 Way RF Combiner DC 2.4G 1


Power splitters used in rf and microwave circuit as a power allocation, and satellite radar is widely used in mobile communication field.Ultra-wideband domains such as electronic countermeasures, test and measurement. Our microwave has strong research and development production capacity, production of power splitters has good frequency characteristic, stable performance, high precision, large power and high applicability, installation simple 1 art and so on. My company has a strong ability of design and test of the products have special requirements can all provide customized production.

Product features

DC - 2.4 GHZ, wide bandwidth Excellent consistency of amplitude and phase standard working temperature and -35 ℃ to + 75 ℃ can design and produce according to customer requirements



Mainly used mobile communications satellite radar Electronic counter measures Ultra-wideband field test and measurement, etc

Please see our website for more products.
