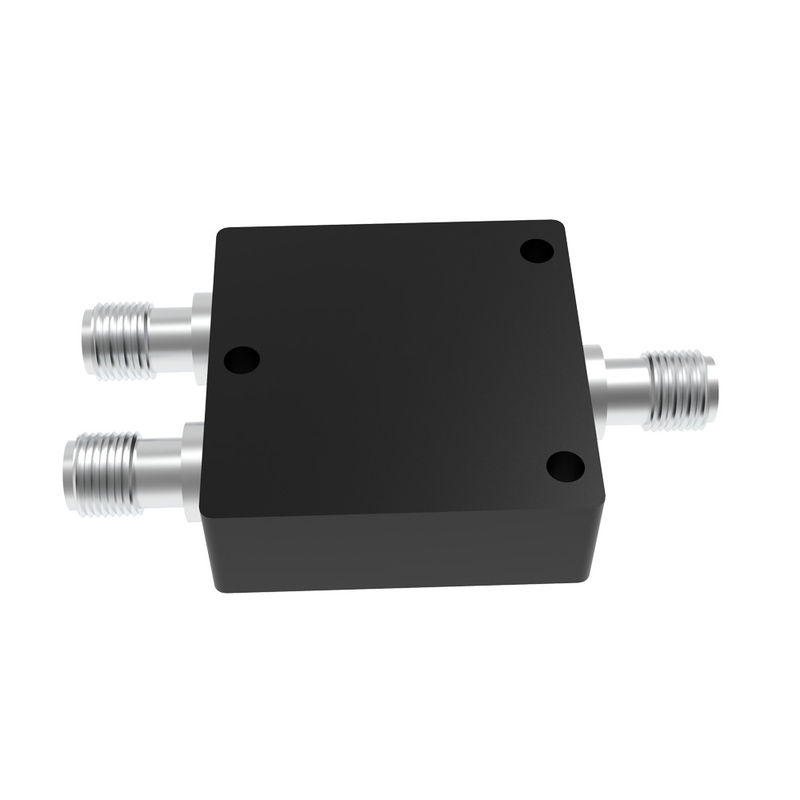

DC 2G Resistive Power Divider RF Splitter SMA Combiner Female Connector

Name: DC 2G Resistive Power Divider RF Splitter SMA Combiner Female Connector
Brand: Vinncom
SKU: VN-PD-2G-OS2
Rating: 4.8 (151 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-2G-OS2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2G rf splitter sma, Resistive rf splitter sma, sma splitter combiner Divider


Operating Frequency ( GHz ):	DC-2G	Impedance( Ohm ):	50
VSWR(Input Port):	≤1.20	VSWR(Output Port):	≤1.20
Insertion Loss:	≤6±0.5	Average Power (Watt Max.):	2W
Isolation(dB):	≥6	Amplitude Balance(dB):	±0.5

Operating Frequency ( GHz ):	DC-2G
Impedance( Ohm ):	50
VSWR(Input Port):	≤1.20
VSWR(Output Port):	≤1.20
Insertion Loss:	≤6±0.5
Average Power (Watt Max.):	2W
Isolation(dB):	≥6
Amplitude Balance(dB):	±0.5

Description

DC 2G Resistive Power Divider RF Splitter SMA Combiner Female Connector

DC-2G 2 Way Resistive Power Divider SMA Female Connector

Good VSWR
Less Insertion Loss
High isolation

Part Number	VN-PD-2G-OS2
Operating Frequency ( GHz )	DC-2G
Impedance( Ohm )	50
VSWR(Input Port)	≤1.20
VSWR(Output Port)	≤1.20
Insertion loss	≤6±0.5
Average Power (Watt max.)	2W
Isolation(dB)	≥6
Amplitude Balance(dB)	±0.5
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	SMA Female
Dimensions(mm,L×W×H,excl connector)	282810
Dimension Tolerance(mm)	±0.5
Mounting	3-Φ2.8mm through-hole
