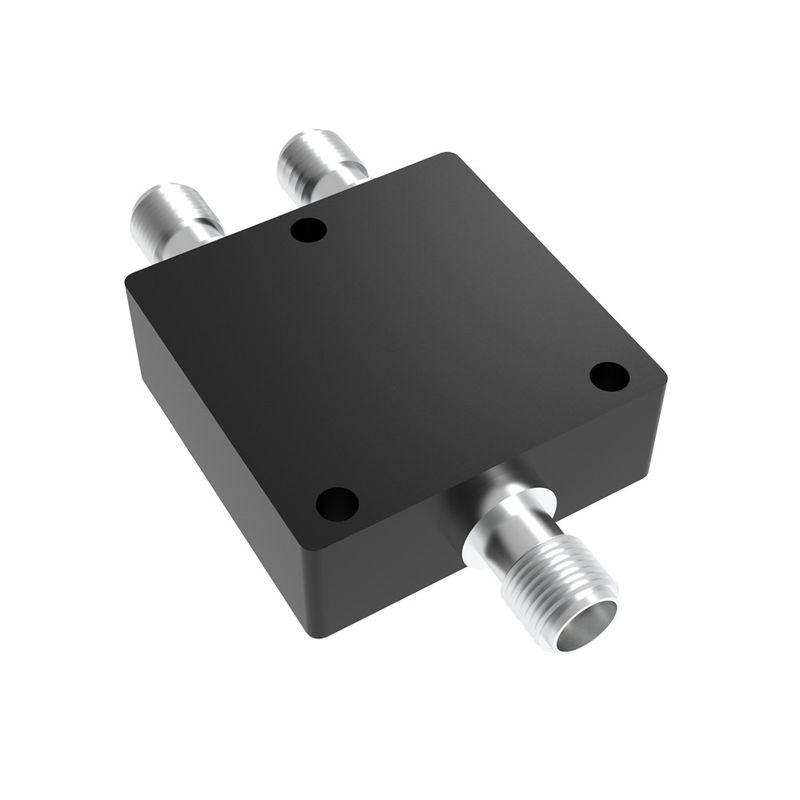

3G Resistive Antenna Power Divider 2 Way Aerial Splitter 50Ohm
  • name
  • name
  • name
  • name

3G Resistive Antenna Power Divider 2 Way Aerial Splitter 50Ohm

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-3G-OX2
Operating Frequency ( GHz ):
DC-3G
Impedance( Ohm ):
50
VSWR(Input Port):
≤1.20
VSWR(Output Port):
≤1.20
Insertion Loss:
≤6.8
Average Power (Watt Max.):
2W
Isolation(dB):
≥5.6
Amplitude Balance(dB):
±0.3
Highlight:

3G Antenna Power Divider

,

Resistive Antenna Power Divider

,

50Ohm 2 way aerial splitter

Product Description

3G 2 Way 50Ohm Resistive Power Divider SMA Female



  • Good VSWR
  • High isolation
  • Less Insertion Loss



Part Number VN-PD-3G-OX2
Operating Frequency ( GHz ) DC-3G

Impedance( Ohm )

50

VSWR(Input Port)

 ≤1.20

VSWR(Output Port)

≤1.20
Insertion loss ≤6.8
Average Power (Watt max.) 2W

Isolation(dB)

≥5.6

Amplitude Balance(dB)

±0.3

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female

Dimension Tolerance(mm)

 ±0.5

Mounting

 3-Φ2.7mm through-hole (SMA)









3G Resistive Antenna Power Divider 2 Way Aerial Splitter 50Ohm 03G Resistive Antenna Power Divider 2 Way Aerial Splitter 50Ohm 1
