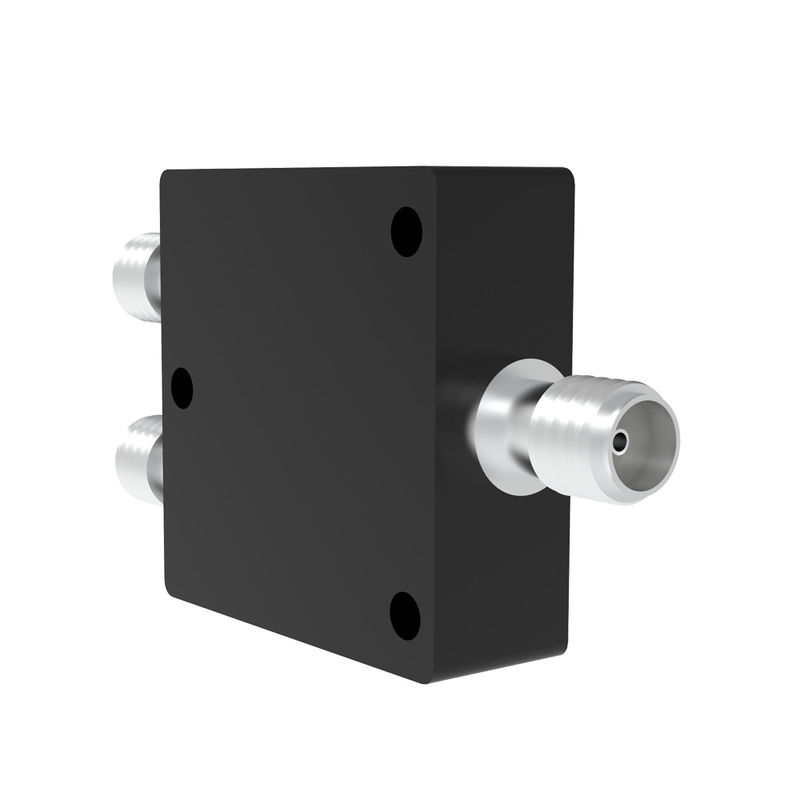

DC4G SMA Resistive Power Splitters Divider Female 2 Way
  • name
  • name
  • name
  • name

DC4G SMA Resistive Power Splitters Divider Female 2 Way

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-4G-OS2
Operating Frequency ( GHz ):
DC-4G
Impedance( Ohm ):
50
VSWR(Input Port):
≤1.20
VSWR(Output Port):
≤1.20
Insertion Loss:
≤6.8
Average Power (Watt Max.):
2W
Isolation(dB):
≥5.6
Amplitude Balance(dB):
±0.3
Highlight:

SMA resistive power splitters

,

DC4G resistive power splitters

,

DC4G resistive power divider

Product Description

DC-4G 2 Way Resistive Power Divider SMA Female



  • Good VSWR
  • Wide band frequency
  • Less Insertion Loss



Part Number VN-PD-4G-OS2
Operating Frequency ( GHz ) DC-4G

Impedance( Ohm )

50

VSWR(Input Port)

 ≤1.20

VSWR(Output Port)

≤1.20
Insertion loss ≤6.8
Average Power (Watt max.) 2W

Isolation(dB)

≥5.6

Amplitude Balance(dB)

±0.3

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female

   Dimensions(mm,L×W×H,excl connector)

 28*28*10

Dimension Tolerance(mm)

 ±0.5
Weight 21g

Mounting

 3-Φ2.7mm through-hole









DC4G SMA Resistive Power Splitters Divider Female 2 Way 0DC4G SMA Resistive Power Splitters Divider Female 2 Way 1


The characteristics of the resistive power splitters make it perfectly suitable for a few appliances and not so ideal for some. The units are generally smaller as they are made of lumped elements. They are extremely broadband, and it is the only type that operates DC onwards. Their power handling capacity is low. For applications where insertion loss and isolation are important factors, Resistive Power Splitters aren’t suitable because they have high loss and poor isolation. They are widely chosen for their simplicity as well. They are simple and can be made easily in a circuit and require minimal design and preparation. If the right resistors are used, and the construction is done right, the frequency response will be great. The Resistive Power Splitters are made from resistors and thus very cost-effective.
