40G 2W RF Frequency Antenna Power Divider Female Connector 2.92mm
  • name
  • name
  • name
  • name

40G 2W RF Frequency Antenna Power Divider Female Connector 2.92mm

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-40G-2.92-2W
Operating Frequency ( GHz ):
DC-40G
Impedance( Ohm ):
50
Input VSWR:
≤1.50
Output VSWR:
≤2.50
Insertion Loss:
≤7.5
Average Power (Watt Max.):
2W
Isolation(dB):
≥9
Amplitude Balance(dB):
±0.5
Phase Balance:
±5°
Interface:
2.92mm Female
Highlight:

40G Antenna Power Divider

,

RF Antenna Power Divider

,

40G rf frequency divider

Product Description

40G 2W 2 Way Resistive Power Divider 2.92mm Female Connector



  • Good VSWR
  • Wide band
  • High isolation



Part Number VN-PD-40G-2.92-2W
Operating Frequency ( GHz ) DC-40G

Impedance( Ohm )

50
Input VSWR ≤1.50
Output VSWR ≤2.50
Insertion loss ≤7.5
Average Power (Watt max.) 2W

Isolation(dB)

≥9

Amplitude Balance(dB)

±0.5
Phase Balance ±5°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 2.92mm Female
Size 17.5*15.8*10mm

Dimension Tolerance(mm)

 ±0.5

Mounting

 3-Φ2.2mm through-hole

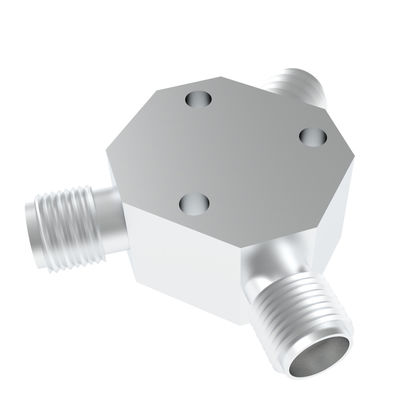

40G 2W RF Frequency Antenna Power Divider Female Connector 2.92mm 040G 2W RF Frequency Antenna Power Divider Female Connector 2.92mm 1
