Female Waveguide Power Splitter Divider Combiner 50G 1W 2.4mm

Name: Female Waveguide Power Splitter Divider Combiner 50G 1W 2.4mm
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-50G-2.4-1W
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-50G-2.4-1W

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      50G waveguide power splitter, waveguide power splitter Divider, 50G power divider combiner


Operating Frequency ( GHz ):	DC-50G	Impedance( Ohm ):	50
Input VSWR:	≤1.50	Output VSWR:	≤2.50
Insertion Loss:	≤7.8	Average Power (Watt Max.):	1W
Isolation(dB):	≥9	Amplitude Balance(dB):	±0.8
Phase Balance:	±8°	Operating Temperature( ℃ ):	-35 ~ + 75c

Operating Frequency ( GHz ):	DC-50G
Impedance( Ohm ):	50
Input VSWR:	≤1.50
Output VSWR:	≤2.50
Insertion Loss:	≤7.8
Average Power (Watt Max.):	1W
Isolation(dB):	≥9
Amplitude Balance(dB):	±0.8
Phase Balance:	±8°
Operating Temperature( ℃ ):	-35 ~ + 75c

Description

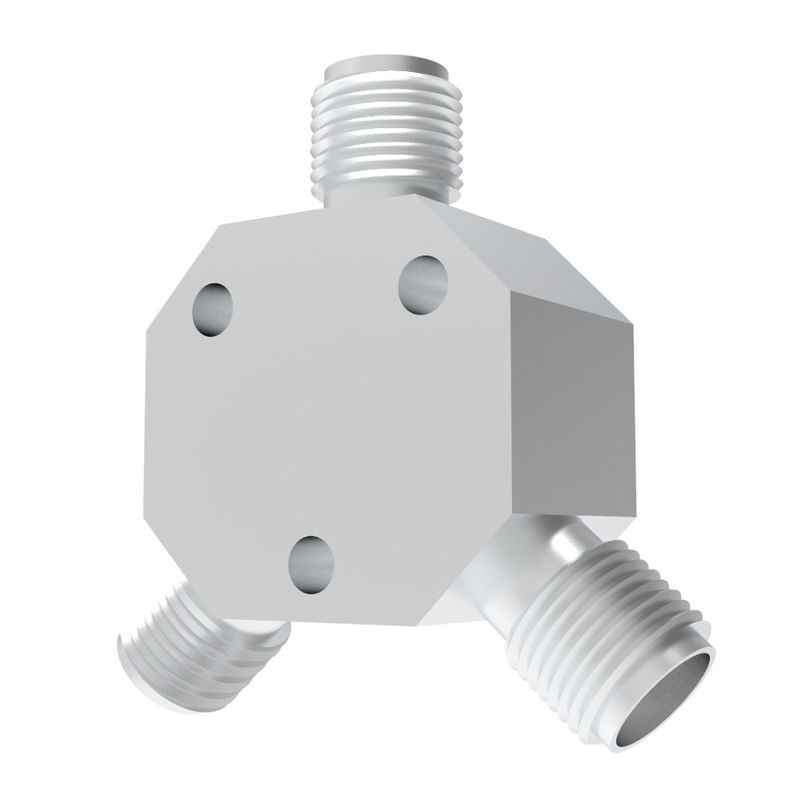

Female Waveguide Power Splitter Divider Combiner 50G 1W 2.4mm

50G 1W 2 Way Resistive Power Divider With 2.4mm Female Connector

Good VSWR at all ports
Wide band frequency
Less Insertion Loss

Part Number	VN-PD-50G-2.4-1W
Operating Frequency ( GHz )	DC-50G
Impedance( Ohm )	50
Input VSWR	≤1.50
Output VSWR	≤2.50
Insertion loss	≤7.8
Average Power (Watt max.)	1W
Isolation(dB)	≥9
Amplitude Balance(dB)	±0.8
Phase Balance	±8°
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	2.4mm Female
Size	17.515.810mm
Weight	40g
Dimension Tolerance(mm)	±0.5
Mounting	3-Φ2.2mm through-hole
