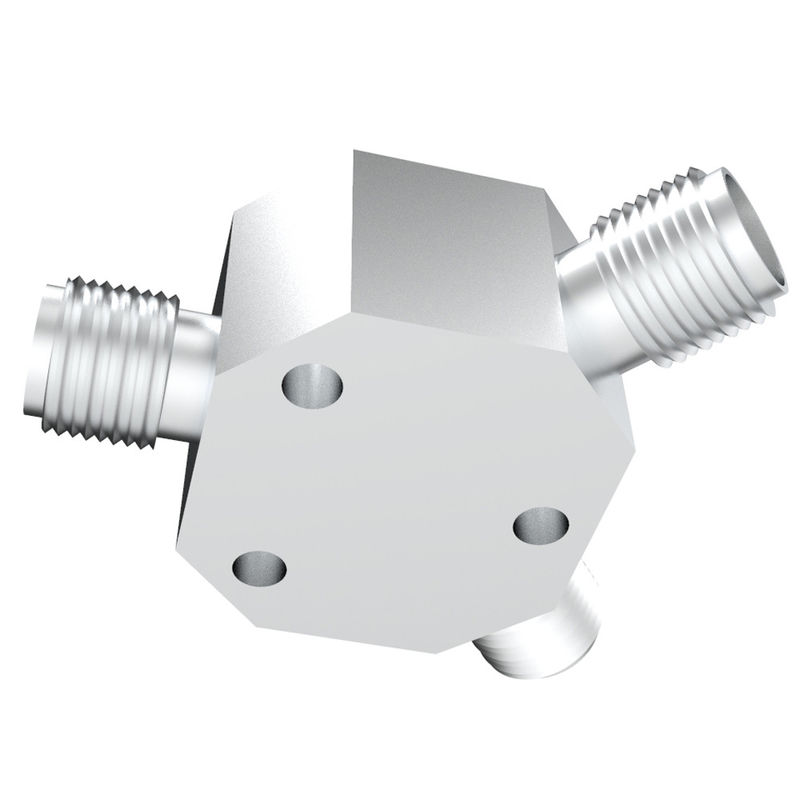

67G 1W Female Wilkinson Antenna Power Divider 1.85mm Two Way
  • name
  • name
  • name
  • name

67G 1W Female Wilkinson Antenna Power Divider 1.85mm Two Way

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-67G-1.85-2W
Operating Frequency ( GHz ):
DC-67G
Impedance( Ohm ):
50
Input VSWR:
≤1.50
Output VSWR:
≤2.50
Insertion Loss:
≤8.0
Average Power (Watt Max.):
1W
Isolation(dB):
≥9
Amplitude Balance(dB):
±0.9
Phase Balance:
±10°
Interface:
1.85mm Female
Highlight:

67G Antenna Power Divider

,

Female Antenna Power Divider

,

67G power divider splitter

Product Description

2 Way Resistive Power Divider 67G 1W 1.85mm Female Splitter



  • Wide band frequency
  • Less Insertion Loss
  • Good VSWR



Part Number VN-PD-67G-1.85-2W
Operating Frequency ( GHz ) DC-67G

Impedance( Ohm )

50
Input VSWR ≤1.50
Output VSWR ≤2.50
Insertion loss ≤8.0
Average Power (Watt max.) 1W

Isolation(dB)

≥9

Amplitude Balance(dB)

±0.9
Phase Balance ±10°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 1.85mm Female
Size 17.5*15.8*10mm
Weight 40g

Dimension Tolerance(mm)

 ±0.5

Mounting

 3-Φ2.2mm through-hole









67G 1W Female Wilkinson Antenna Power Divider 1.85mm Two Way 067G 1W Female Wilkinson Antenna Power Divider 1.85mm Two Way 1
