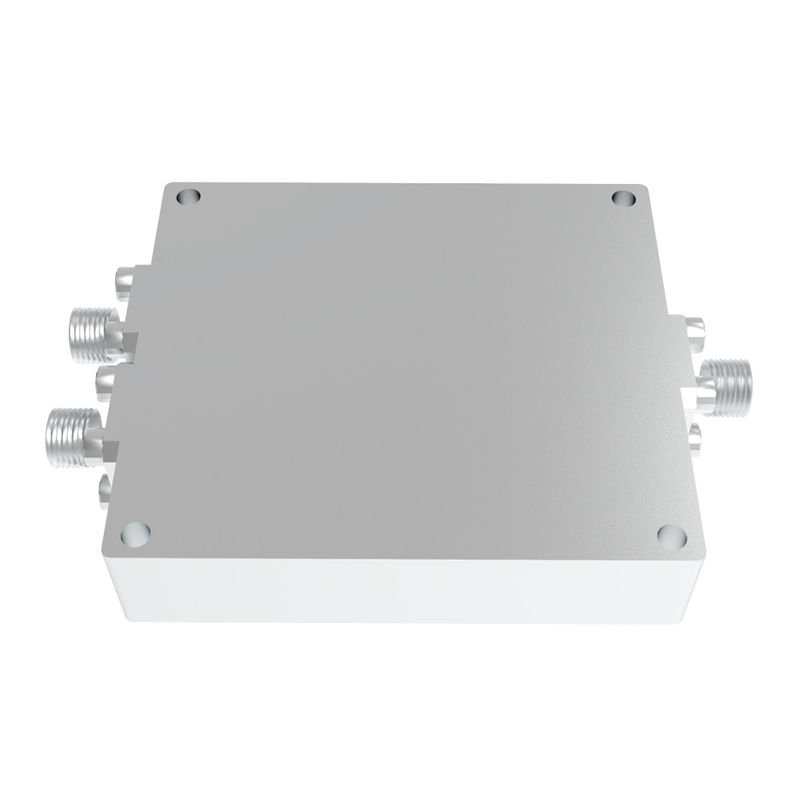

400-2700MHz SMA Female Resistive Power Splitter Waveguide Power Divider

Name: 400-2700MHz SMA Female Resistive Power Splitter Waveguide Power Divider
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-400-2700-OS2
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-400-2700-OS2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Waveguide resistive power splitter, SMA resistive power splitter, 2700MHz waveguide power divider


Operating Frequency ( MHz ):	400-2700	Impedance( Ohm ):	50
Input VSWR:	≤1.20	Output VSWR:	≤1.2
Insertion Loss:	≤0.8	Average Power (Watt Max.):	30W Max. / 2W Max. As Combiner
Isolation(dB):	≥20	Amplitude Balance(dB):	±0.2
Phase Balance:	±3°	Interface:	SMA Female

Operating Frequency ( MHz ):	400-2700
Impedance( Ohm ):	50
Input VSWR:	≤1.20
Output VSWR:	≤1.2
Insertion Loss:	≤0.8
Average Power (Watt Max.):	30W Max. / 2W Max. As Combiner
Isolation(dB):	≥20
Amplitude Balance(dB):	±0.2
Phase Balance:	±3°
Interface:	SMA Female

Description

400-2700MHz SMA Female Resistive Power Splitter Waveguide Power Divider

2 Way Resistive Power Divider/Splitter 400-2700MHz,SMA Female Cpnnector

Good VSWR
Wide band
High isolation

Part Number	VN-PD-400-2700-OS2
Operating Frequency ( GHz )	400-2700
Impedance( Ohm )	50
Input VSWR	≤1.20
Output VSWR	≤1.20
Insertion loss	≤0.8
Average Power (Watt max.)	30W max. / 2W max. as combiner
Isolation(dB)	≥20
Amplitude Balance(dB)	±0.2
Phase Balance	±3°
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	SMA Female
Size	565012mm
Weight	72g
Dimension Tolerance(mm)	±0.5
Mounting	4-Φ2.8mm through-hole
