Through Hole Mounting Antenna Power Divider Splitter 8000MHz 50ohm Custom

Name: Through Hole Mounting Antenna Power Divider Splitter 8000MHz 50ohm Custom
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-400-8000-OS2
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-400-8000-OS2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Custom Antenna Power Divider, 8000MHz Antenna Power Divider, 50ohm antenna power splitter


Operating Frequency ( MHz ):	400-8000	Impedance( Ohm ):	50
Input VSWR:	≤1.30	Output VSWR:	≤1.20
Insertion Loss:	≤1.5	Average Power (Watt Max.):	30W Max. / 2W Max. As Combiner
Isolation(dB):	≥18	Amplitude Balance(dB):	±0.2
Phase Balance:	±3°	Operating Temperature( ℃ ):	-35 ~ + 75c

Operating Frequency ( MHz ):	400-8000
Impedance( Ohm ):	50
Input VSWR:	≤1.30
Output VSWR:	≤1.20
Insertion Loss:	≤1.5
Average Power (Watt Max.):	30W Max. / 2W Max. As Combiner
Isolation(dB):	≥18
Amplitude Balance(dB):	±0.2
Phase Balance:	±3°
Operating Temperature( ℃ ):	-35 ~ + 75c

Description

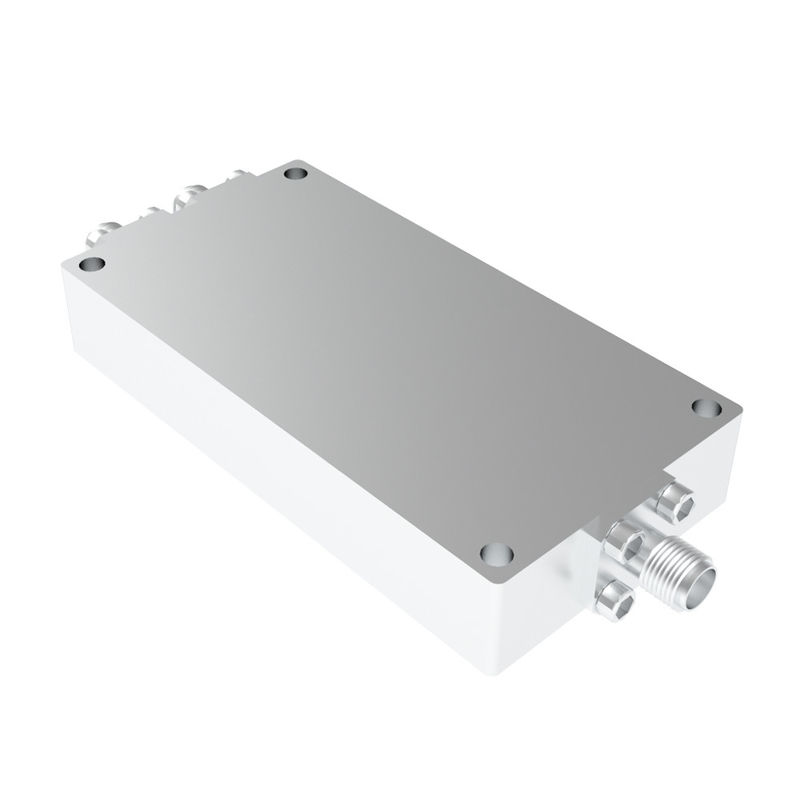

Through Hole Mounting Antenna Power Divider Splitter 8000MHz 50ohm Custom

400-8000MHz SMA Female 50ohm 2 Way Power Divider/Combiner

Wide band
Good VSWR
High isolation

Part Number	VN-PD-400-8000-OS2
Operating Frequency ( MHz )	400-8000
Impedance( Ohm )	50
Input VSWR	≤1.30
Output VSWR	≤1.20
Insertion loss	≤1.5
Average Power (Watt max.)	30W max. / 2W max. as combiner
Isolation(dB)	≥18
Amplitude Balance(dB)	±0.2
Phase Balance	±3°
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	SMA Female
Size	743512mm
Dimension Tolerance(mm)	±0.5
Mounting	4-Φ3.2mm through-hole
