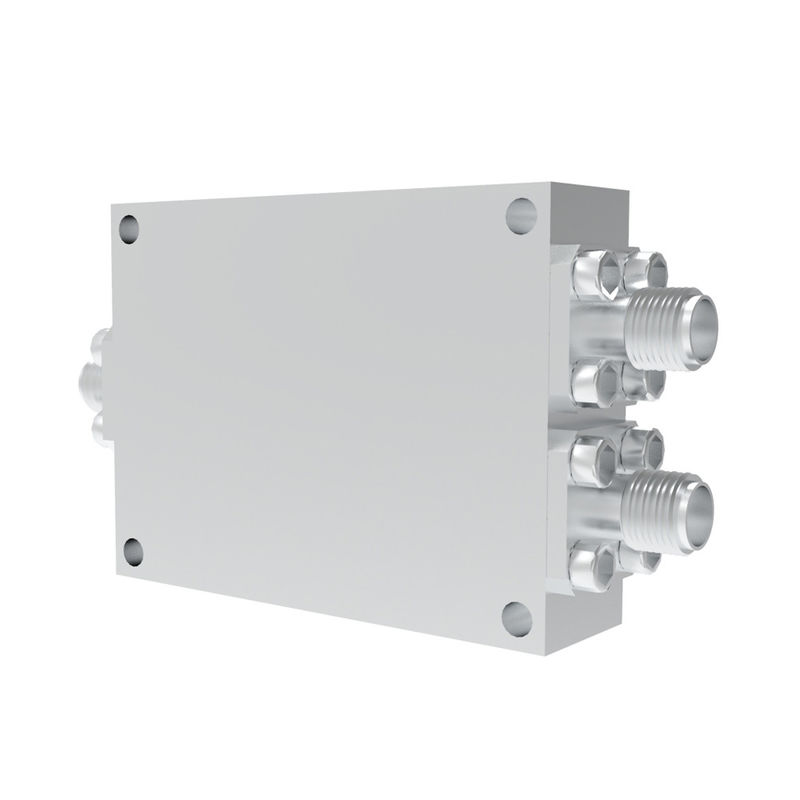

Resistive Power SMA Splitter Combiner Divider 6000MHz For IBS And DAS

Name: Resistive Power SMA Splitter Combiner Divider 6000MHz For IBS And DAS
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-500-6000-OS2
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-500-6000-OS2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Resistive sma splitter combiner, IBS sma splitter combiner, DAS resistive power splitter


Operating Frequency ( MHz ):	500-6000	Impedance( Ohm ):	50
Input VSWR:	≤1.25	Output VSWR:	≤1.20
Insertion Loss:	≤1.2	Average Power (Watt Max.):	30W Max. / 2W Max. As Combiner
30W Max. / 2W Max. As Combiner:	≥20	Amplitude Balance(dB):	±0.2
Phase Balance:	±3°	Interface:	SMA Female

Operating Frequency ( MHz ):	500-6000
Impedance( Ohm ):	50
Input VSWR:	≤1.25
Output VSWR:	≤1.20
Insertion Loss:	≤1.2
Average Power (Watt Max.):	30W Max. / 2W Max. As Combiner
30W Max. / 2W Max. As Combiner:	≥20
Amplitude Balance(dB):	±0.2
Phase Balance:	±3°
Interface:	SMA Female

Description

Resistive Power SMA Splitter Combiner Divider 6000MHz For IBS And DAS

500-6000MHz Wilkinson SMA Female 2 Way Power Divider/Combiner For IBS And DAS

Good VSWR
Wide band frequency
High isolation

Part Number	VN-PD-500-6000-OX2
Operating Frequency ( MHz )	500-6000
Impedance( Ohm )	50
Input VSWR	≤1.25
Output VSWR	≤1.20
Insertion loss	≤1.2
Average Power (Watt max.)	30W max. / 2W max. as combiner
Isolation(dB)	≥20
Amplitude Balance(dB)	±0.2
Phase Balance	±3°
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	SMA Female
Size	1572610mm
Dimension Tolerance(mm)	±0.5
Mounting	4-Φ2.8mm through-hole (SMA)
