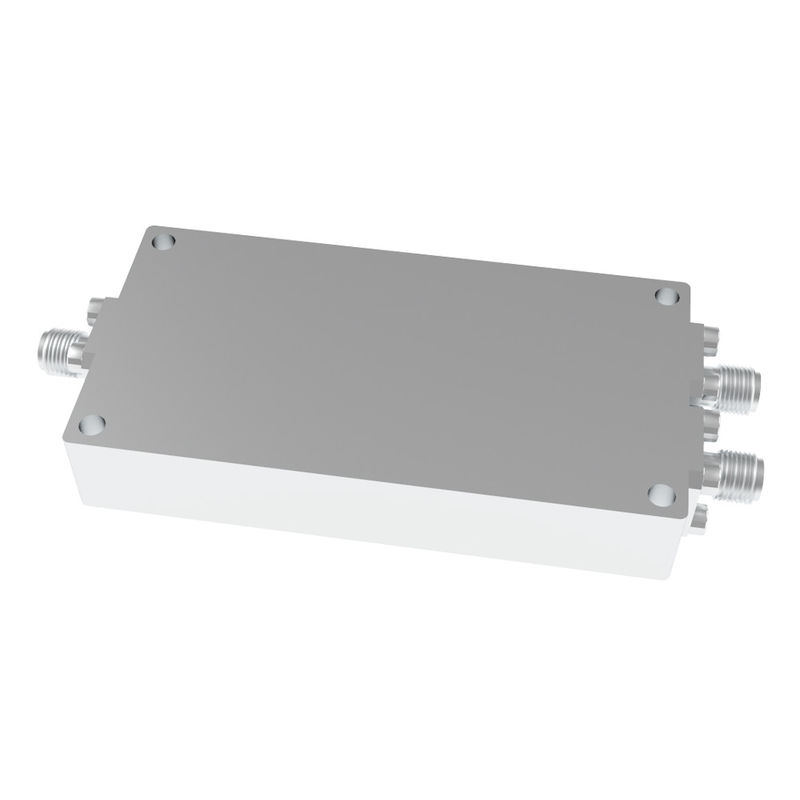

Unequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHz
  • name
  • name
  • name
  • name

Unequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHz

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
500-8000
Model Number
VN-PD-500-8000-OS2
Operating Frequency ( MHz ):
500-8000
Impedance( Ohm ):
50
Input VSWR:
≤1.25
Output VSWR:
≤1.20
Insertion Loss:
≤1.5
Isolation(dB):
≥20
Amplitude Balance(dB):
±0.2
Phase Balance:
±3°
Highlight:

Unequal Antenna Power Divider

,

50OHM Antenna Power Divider

,

50OHM rf splitter sma

Product Description

500-8000MHz Wilkinson SMA Female 2 Way Power Divider/Combiner



  • Wide band frequency
  • Less Insertion Loss
  • Good VSWR at all ports



Part Number VN-PD-500-8000-OX2
Operating Frequency ( MHz ) 500-8000

Impedance( Ohm )

50
Input VSWR ≤1.25
Output VSWR ≤1.20
Insertion loss ≤1.5(SMA) ≤1.8(N)
Average Power (Watt max.) 30W max. / 2W max. as combiner

Isolation(dB)

≥20

Amplitude Balance(dB)

±0.2
Phase Balance ±3°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female N Female

Dimension Tolerance(mm)

 ±0.5

Mounting

 4-Φ3.2mm through-hole









Unequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHz 0Unequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHz 1
