SMA Wilkinson Antenna Power Divider Broadband Power Combiner 500-18000MHz 2 Way

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-500-18000-OS2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

Broadband Antenna Power Divider

,

18000MHz Antenna Power Divider

,

Antenna broadband power combiner

Operating Frequency ( MHz ):
500-18000
Impedance( Ohm ):
50
Input VSWR:
≤1.60
Output VSWR:
≤1.50
Insertion Loss:
≤1.2(SMA)
Average Power (Watt Max.):
20W Max. / 1W Max. As Combiner
Isolation(dB):
≥16
Amplitude Balance(dB):
±0.3
Phase Balance:
±5°
Interface:
SMA Female
Operating Frequency ( MHz ):
500-18000
Impedance( Ohm ):
50
Input VSWR:
≤1.60
Output VSWR:
≤1.50
Insertion Loss:
≤1.2(SMA)
Average Power (Watt Max.):
20W Max. / 1W Max. As Combiner
Isolation(dB):
≥16
Amplitude Balance(dB):
±0.3
Phase Balance:
±5°
Interface:
SMA Female
Description
SMA Wilkinson Antenna Power Divider Broadband Power Combiner 500-18000MHz 2 Way

500-18000MHz 2 Way Power Divider/Combiner SMA Female Connector



  • Wide band frequency
  • Good VSWR at all ports
  • Less Insertion Loss



Part Number VN-PD-500-18000-OX2
Operating Frequency ( MHz ) 500-18000

Impedance( Ohm )

50

Input VSWR 1.60
Output VSWR ≤1.50
Insertion loss ≤1.2(SMA)
Average Power (Watt max.) 20W max. / 1W max. as combiner

Isolation(dB)

≥16

Amplitude Balance(dB)

±0.3

Phase Balance ±5°

Operating Temperature( ℃ )

-45 ~ + 85c

Interface

SMA Female N Female

Dimension Tolerance(mm)

±0.5

Mounting

4-Φ2.3mm through-hole (SMA)

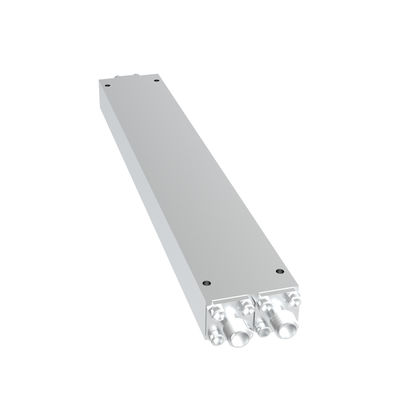

SMA Wilkinson Antenna Power Divider Broadband Power Combiner 500-18000MHz 2 Way 0SMA Wilkinson Antenna Power Divider Broadband Power Combiner 500-18000MHz 2 Way 1
