OEM N Female Wilkinson Power Divider Splitter Combiner 50ohm 2 Way

Name: OEM N Female Wilkinson Power Divider Splitter Combiner 50ohm 2 Way
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-500-18000-ON2
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-500-18000-ON2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: bubble+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      OEM 2 way wilkinson power divider, 50ohm 2 way wilkinson power divider, OEM wilkinson splitter combiner


Frequency:	500-18000MHz	Impedance( Ohm ):	50
Input VSWR:	≤1.60	Output VSWR:	≤1.50
Insertion Loss:	≤1.5	Average Power (Watt Max.):	20W Max. / 1W Max. As Combiner

Frequency:	500-18000MHz
Impedance( Ohm ):	50
Input VSWR:	≤1.60
Output VSWR:	≤1.50
Insertion Loss:	≤1.5
Average Power (Watt Max.):	20W Max. / 1W Max. As Combiner

Description

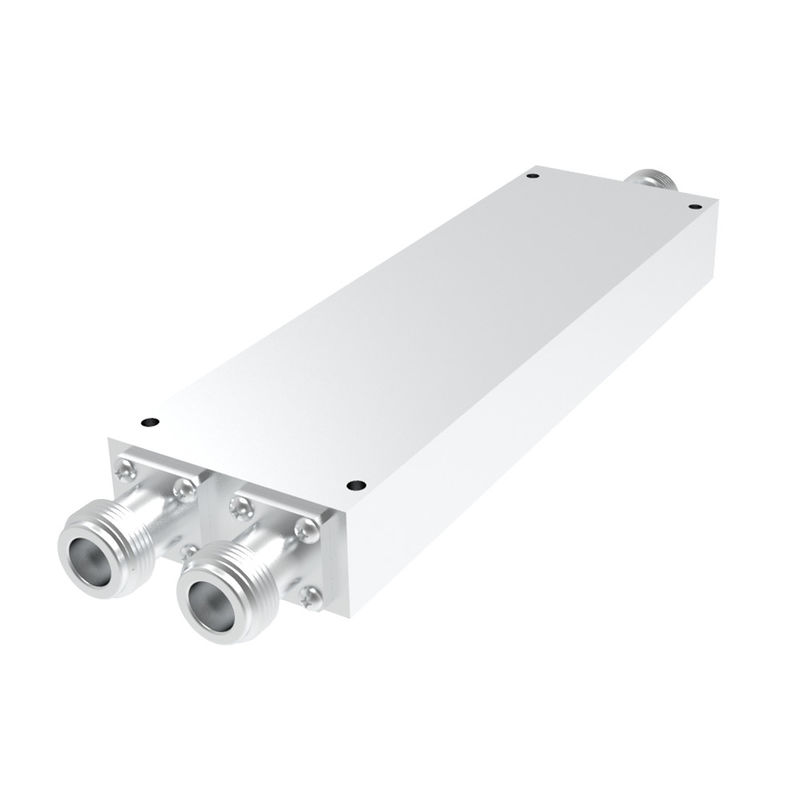

OEM N Female Wilkinson Power Divider Splitter Combiner 50ohm 2 Way

500-18000MHz 2 Way Power Divider/Combiner N Female Wilkinson Power Splitter

Good VSWR at all ports
Wide band frequency
High isolation

Part Number	VN-PD-500-18000-OX2
Operating Frequency ( MHz )	500-18000
Impedance( Ohm )	50
Input VSWR	≤1.60
Output VSWR	≤1.50
Insertion loss	≤1.5(N)
Average Power (Watt max.)	20W max. / 1W max. as combiner
Isolation(dB	≥16
Amplitude Balance(dB)	±0.3
Phase Balance	±5°
Operating Temperature( ℃ )	-45 ~ + 85c
Interface	SMA Female N Female
Dimension Tolerance(mm)	±0.5
Mounting	4-Φ3.2mm through-hole
