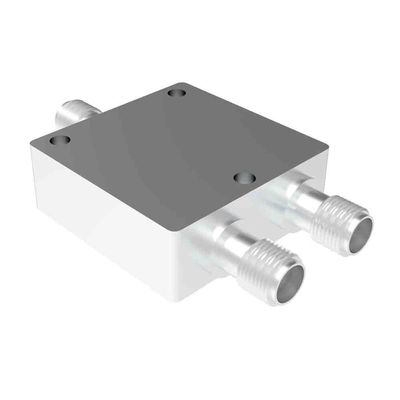

2GHz Wilkinson 2 Way Antenna Power Divider Splitter With SMA Female Connector
  • name
  • name
  • name
  • name

2GHz Wilkinson 2 Way Antenna Power Divider Splitter With SMA Female Connector

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-1000-2000-OS2
Operating Frequency ( MHz ):
1000-2000
Impedance( Ohm ):
50
Input VSWR:
≤1.20
Output VSWR:
≤1.20
Insertion Loss:
≤0.3
Average Power (Watt Max.):
30W Max. / 2W Max. As Combiner
Highlight:

2GHz Antenna Power Divider

,

Antenna Power Divider Splitter

,

SMA 2 Way Power Divider

Product Description

1-2GHz Wilkinson 2 Way Power Splitter With SMA Female Connector



  • High isolation
  • Good VSWR at all ports
  • Wide band



Part Number VN-PD-1000-2000-OX2
Operating Frequency ( MHz ) 1000-2000

Impedance( Ohm )

50
Input VSWR ≤1.20
Output VSWR ≤1.20
Insertion loss ≤0.3(SMA)
Average Power (Watt max.) 30W max. / 2W max. as combiner

Isolation(dB)

≥20

Amplitude Balance(dB)

±0.2
Phase Balance ±2°

Operating Temperature( ℃ )

-45 ~ + 85c

Interface

 SMA Female

Dimension Tolerance(mm)

 ±0.5

Mounting

 4-Φ2.7mm through-hole (SMA)



2GHz Wilkinson 2 Way Antenna Power Divider Splitter With SMA Female Connector 02GHz Wilkinson 2 Way Antenna Power Divider Splitter With SMA Female Connector 1


Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
