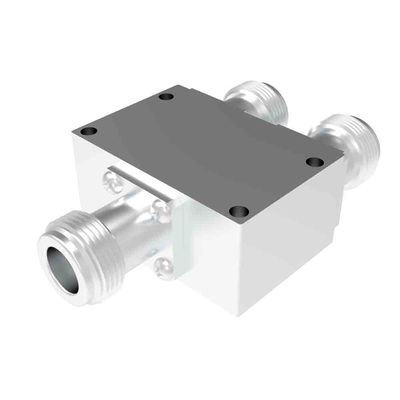

2G Wideband Wilkinson Antenna Power Divider N Female Connector 2000Mhz

2G Wideband Wilkinson Antenna Power Divider N Female Connector 2000Mhz

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-PD-1000-2000-ON2
Operating Frequency ( MHz ):
1000-2000
Impedance( Ohm ):
50
Input VSWR:
≤1.20
Output VSWR:
≤1.20
Insertion Loss:
≤0.35(N)
Average Power (Watt Max.):
30W Max. / 2W Max. As Combiner
Isolation(dB):
≥20
Amplitude Balance(dB):
±0.2
Phase Balance:
±2°
Operating Temperature( ℃ ):
-45 ~ + 85c
Highlight:

2G Antenna Power Divider

,

Wilkinson Antenna Power Divider

,

2000Mhz wideband wilkinson power divider

Product Description

2G 2 Way Wilkinson Power Splitter N Female Connector



  • Good VSWR at all ports
  • Less Insertion Loss
  • High isolation



Part Number VN-PD-1000-2000-OX2
Operating Frequency ( MHz ) 1000-2000

Impedance( Ohm )

50

Input VSWR 1.20
Output VSWR ≤1.20
Insertion loss ≤0.35(N)
Average Power (Watt max.) 30W max. / 2W max. as combiner

Isolation(dB)

≥20

Amplitude Balance(dB)

±0.2

Phase Balance ±2°

Operating Temperature( ℃ )

-45 ~ + 85c

Interface

 N Female

Dimension Tolerance(mm)

±0.5

Mounting

 4-Φ2.8mm through-hole









2G Wideband Wilkinson Antenna Power Divider N Female Connector 2000Mhz 02G Wideband Wilkinson Antenna Power Divider N Female Connector 2000Mhz 1
