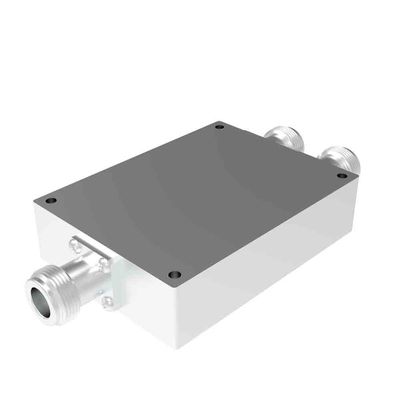

2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Female

Name: 2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Female
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-1000-4000-ON2
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-PD-1000-4000-ON2

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      4000MHz Antenna Power Divider, 2 Way Antenna Power Divider, 4000MHz wilkinson splitter


Operating Frequency ( MHz ):	1000-4000	Impedance( Ohm ):	50
Input VSWR:	≤1.50	Output VSWR:	≤1.30
Insertion Loss:	≤1.2	Average Power (Watt Max.):	200W Max. / 10W Max. As Combiner
Isolation(dB):	≥16	Amplitude Balance(dB):	±0.3
Phase Balance:	±4°	Operating Temperature( ℃ ):	-35 ~ + 75c

Operating Frequency ( MHz ):	1000-4000
Impedance( Ohm ):	50
Input VSWR:	≤1.50
Output VSWR:	≤1.30
Insertion Loss:	≤1.2
Average Power (Watt Max.):	200W Max. / 10W Max. As Combiner
Isolation(dB):	≥16
Amplitude Balance(dB):	±0.3
Phase Balance:	±4°
Operating Temperature( ℃ ):	-35 ~ + 75c

Description

2 Way Wilkinson Antenna Power Divider 1000-4000MHz N Female

1000-4000MHz N Female 2 Way Power Divider/Combiner/Wilkinson Power Divider

Wide band frequency
Less Insertion Loss
High isolation

Part Number	VN-PD-1000-4000-ON2
Operating Frequency ( MHz )	1000-4000
Impedance( Ohm )	50
Input VSWR	≤1.50
Output VSWR	≤1.30
Insertion loss	≤1.2
Average Power (Watt max.)	200W max. / 10W max. as combiner
Isolation(dB)	≥16
Amplitude Balance(dB)	±0.3
Phase Balance	±4°
Operating Temperature( ℃ )	-35 ~ + 75c
Interface	N Female
Size	806024mm
Weight	220g
Dimension Tolerance(mm)	±0.5
Mounting	4-Φ4.5mm through-hole
