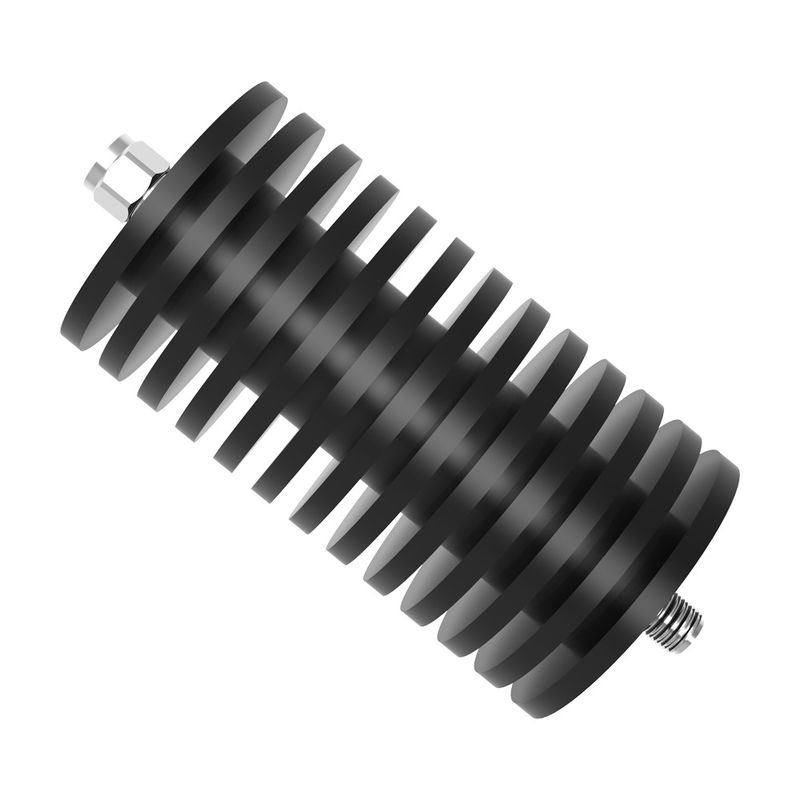

RoHS Outdoor 30dB Fixed RF Attenuator DC-40GHz 20W 2.92mm
  • name
  • name
  • name
  • name

RoHS Outdoor 30dB Fixed RF Attenuator DC-40GHz 20W 2.92mm

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO9000 RoHS
Model Number
VN-AT-40G-20W-2.92mm
Operating Frequency:
DC-40 GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
20
Operating Temperature ( ℃ ):
-55~+85℃
Highlight:

RoHS Fixed RF Attenuator

,

30dB Fixed RF Attenuator

,

Outdoor 30db attenuator

Product Description

DC-40GHz 20W 2.92mm Male-2.92mm Female 3 10 20 30 40dB Attenuator



  • Wide working frequency range
  • Low standing wave
  • High attenuation accuracy



Part Number VN-AT-40G-20W-2.92mm
Operating Frequency DC-40 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max)

20
Interface 2.92mm Male - 2.92mm Female 2.4mm Male - 2.4mm Female
Operating Temperature ( ℃ ) -55~+85℃
Attenuation(dB) 3,10 20 30 40 VSWR
DC~26.5 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 1.3
DC~32 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 1.4
DC~40 -1.5/+3.0 -1.0/+2.0 -1.0/+2.0 -1.0/+2.0 1.4
Dimension (mm), include connector) Φ38*Lmm
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes



RoHS Outdoor 30dB Fixed RF Attenuator DC-40GHz 20W 2.92mm 0RoHS Outdoor 30dB Fixed RF Attenuator DC-40GHz 20W 2.92mm 1




Connector naming rules:

2 - 2.4mm (Outline A)

K - 2.92mm (Outline B, C, D)

Outline B - Attenuation: 10, 20, 30dB

Outine C - Attenuation: 3dB

Outine D - Attenuation: 40dB







Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
