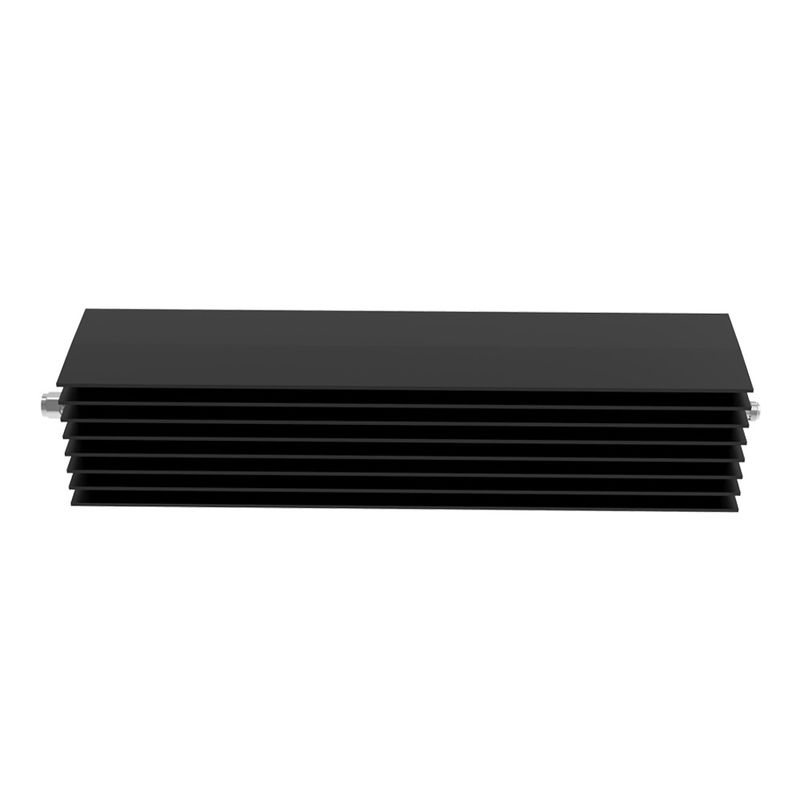

N Male High Power RF Attenuator For Radio 18ghz 500w

Name: N Male High Power RF Attenuator For Radio 18ghz 500w
Brand: Vinncom
SKU: VN-AT-18G-500W-ONx
Rating: 4.5 (181 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-AT-18G-500W-ONx

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam/box

Delivery Time: 2-4weeks

Payment Terms: T/T, , L/C, D/A, D/P

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    500W high power rf attenuator, 18GHz high power rf attenuator, 500W radio attenuator


Operating Frequency:	DC-18 GHZ	Impedance ( Ohm ):	50
Application:	Indoor & Outdoor	Degree Of Protection:	IP65
Handling Power (Watt, Max):	500W	Interface:	N Male - N Female

Operating Frequency:	DC-18 GHZ
Impedance ( Ohm ):	50
Application:	Indoor & Outdoor
Degree Of Protection:	IP65
Handling Power (Watt, Max):	500W
Interface:	N Male - N Female

Description

N Male High Power RF Attenuator For Radio 18ghz 500w

18GHz 500W N Male-N Female RF Attenuator High Frequency Components

Low standing wave
High attenuation accuracy
High indicator stability

Part Number	VN-AT-18G-500W-ONx
Operating Frequency	DC-18 GHZ
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	500W
Interface	N Male - N Female
Operating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	10	20	30	40	50	60	VSWR
DC-4GHz	-0.6/+1.5	±1.2	±1.0	±1.0	±1.0	±1.0	≤1.25
DC-8GHz	-0.5/+2.0	±2.0	±1.5	±1.1	±1.1	±1.1	≤1.30
DC-12.4GHz	±3.0	±2.0	-1.5/+2.0	±1.2	±1.2	±1.2	≤1.35
DC-18GHz	±6.0	±5.0	0/+6.0	±1.5	±1.5	±1.5	≤1.50
Dimension (mm)(L×W×H, excl connector)	509120110mm
