2W Male Female Radio 60db RF Attenuator DC 50GHz 2.4mm OEM
  • name
  • name
  • name
  • name

2W Male Female Radio 60db RF Attenuator DC 50GHz 2.4mm OEM

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO9000 RoHS
Model Number
VN-AT-50G-2W-2.4mm
Operating Frequency:
DC-50 GHZ
VSWR:
≦1.25
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Handling Power (Watt, Max):
2W
Interface:
2.4mm Male-2.4mm Female
Highlight:

2W RF Attenuator

,

OEM RF Attenuator

,

Female 60db attenuator

Product Description

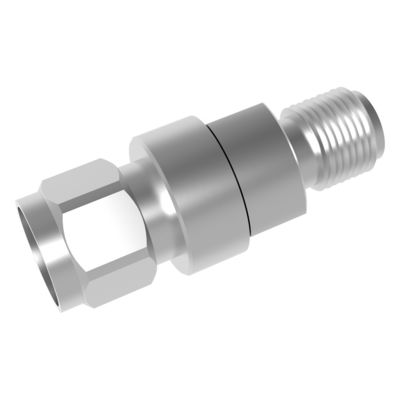

DC-50GHz 2W 2.4mm Male-2.4mm Female xdB Attenuator



  • Wide working frequency range
  • Low standing wave
  • High attenuation accuracy



Part Number VN-AT-50G-2W-2.4mm
Operating Frequency DC-50 GHZ
VSWR ≦1.25
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 2W
Interface 2.4mm Male-2.4mm Female
Operating Temperature ( ℃ ) -55~+125℃
Attenuation(dB) 0-60
Attenuation Accuracy

±0.6dB@0dB attenuation ±1dB@1~30dB attenuation

±2dB@40~60dB attenuation
Dimension (mm)(L×W×H, include connector) Φ8*24.64mm(0~30dB) Φ8*27.45(40~60dB)
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes



2W Male Female Radio 60db RF Attenuator DC 50GHz 2.4mm OEM 02W Male Female Radio 60db RF Attenuator DC 50GHz 2.4mm OEM 1
