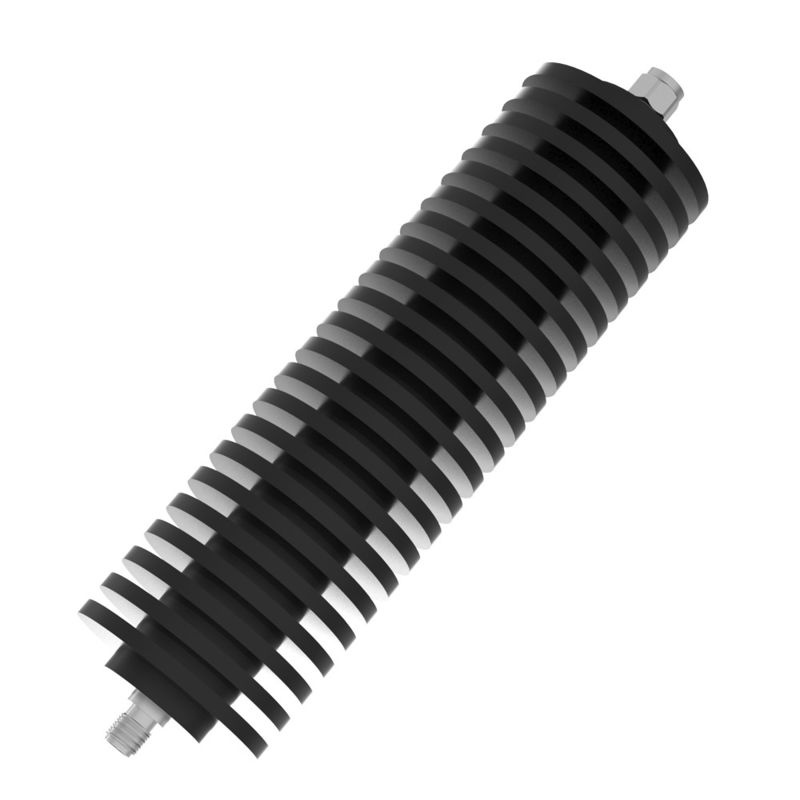

OEM Fixed Coaxial 40dB Attenuator DC 40GHz 50W 2.92mm
  • name
  • name
  • name
  • name

OEM Fixed Coaxial 40dB Attenuator DC 40GHz 50W 2.92mm

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS ISO9000
Model Number
VN-AT-40G-50W-2.92mm
Operating Frequency:
DC-40 GHZ
VSWR:
≦1.6
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Interface:
2.92mm Male-2.92mm Female
Highlight:

RF 40db attenuator

,

50W 40db attenuator

,

40db fixed coaxial attenuator

Product Description



DC-40GHz 50W 2.92mm Male-2.92mm Female xdB Attenuator



  • Low standing wave
  • High attenuation accuracy
  • High indicator stability



Part Number VN-AT-40G-50W-2.92mm
Operating Frequency DC-40 GHZ
VSWR ≦1.6
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 50W
Interface 2.92mm Male-2.92mm Female
Operating Temperature ( ℃ ) -55~+100℃
Attenuation(dB) 20 30 40
Attenuation Accuracy -3.0/+5.0dB (20dB) ±3.0dB (30, 40dB)
Dimension (mm)(L×W×H, include connector) Φ45*145mm
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes



OEM Fixed Coaxial 40dB Attenuator DC 40GHz 50W 2.92mmOEM Fixed Coaxial 40dB Attenuator DC 40GHz 50W 2.92mm
OEM Fixed Coaxial 40dB Attenuator DC 40GHz 50W 2.92mm
Tags:

fixed rf attenuator,

fixed coaxial attenuator,

precision attenuator
