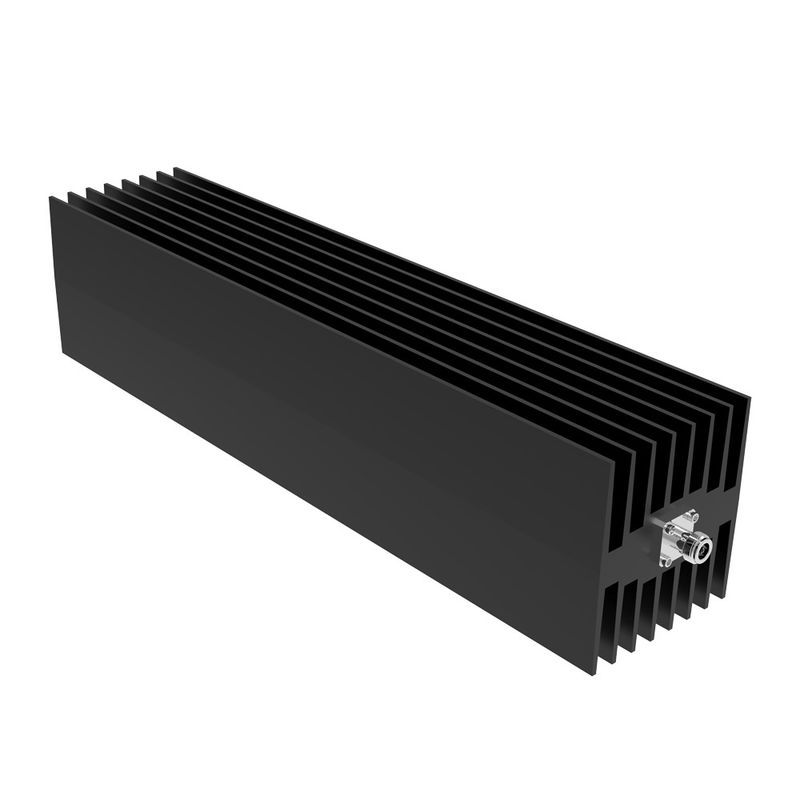

10dB-60dB Adjustable RF Digital Attenuator DC 18GHz 600W N Female N Female

Name: 10dB-60dB Adjustable RF Digital Attenuator DC 18GHz 600W N Female N Female
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-AT-18G-600W-ONF
Price: 6.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-AT-18G-600W-ONF

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: T/T, , L/C, D/A, D/P

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      600W RF Digital Attenuator, Adjustable RF Digital Attenuator, 10dB digital rf attenuator


Operating Frequency:	DC-18 GHZ	Impedance ( Ohm ):	50
Application:	Indoor & Outdoor	Degree Of Protection:	IP65
Handling Power (Watt, Max):	600W	Interface:	N Female - N Female

Operating Frequency:	DC-18 GHZ
Impedance ( Ohm ):	50
Application:	Indoor & Outdoor
Degree Of Protection:	IP65
Handling Power (Watt, Max):	600W
Interface:	N Female - N Female

Description

10dB-60dB Adjustable RF Digital Attenuator DC 18GHz 600W N Female N Female

DC-18GHz 600W N Female-N Female 10-60dB RF Attenuator

High indicator stability
Wide working frequency range
Low standing wave

Part Number	VN-AT-18G-600W-ONF
Operating Frequency	DC-18 GHZ
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	600W
Interface	N Female - N Female
FOperating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	10	20	30	40	50	60	VSWR
DC-4GHz	-0.6/+1.5	±1.2	±1.0	±1.0	±1.0	±1.0	≤1.25
DC-8GHz	-0.5/+2.0	±2.0	±1.5	±1.1	±1.1	±1.1	≤1.30
DC-12.4GHz	±3.0	±2.0	-1.5/+2.0	±1.2	±1.2	±1.2	≤1.35
DC-18GHz	±6.0	±5.0	0/+6.0	±1.5	±1.5	±1.5	≤1.50
Dimension (mm)(L×W×H, excl connector)	110120509mm
