Outdoor Switched Fixed Rf Power Attenuator 100W ROHS
  • name
  • name
  • name
  • name

Outdoor Switched Fixed Rf Power Attenuator 100W ROHS

MOQ: 10
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T, T/T
Supply Capacity: 100pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LPAT-0727-100W-ONx
Connector:
N Male - N Female
Frequency:
698-2700 MHz ,617-2700MHz
Design:
Coupler+Cable Rolling
PIM:
-165dbc @ 43dbm*2
Color:
Black Or Customized
Highlight:

switched rf power attenuator

,

ROHS 100W rf power attenuator

,

100W fixed rf attenuator

Product Description



698-2700MHz 100 W N Male To N Female Low PIM -155dbc 160dbc RF Attenuator 5~40dB RF Coaxial Attenuators



  • Wide band frequency
  • Low PIM
  • High attenuation accuracy



Part Number VN-LPAT-0727-100W-ONx
   Operating Frequency ( MHz )    698-2700
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation (dB) 5 ± 0.8 6 ± 0.8 7 ± 0.8 10 ± 0.8 15 ± 1 20 ± 1 30 ± 1.2 40 ± 1.5
IM3 (dBc @ 2×43dBm) -155 / -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male to N Female
Handling Power (Watt, max) 100
Peak Power (Watt, max) 800
Dimension (mm) 220 × 170 × 68 (excludes connector)
ROHS Compliance Yes

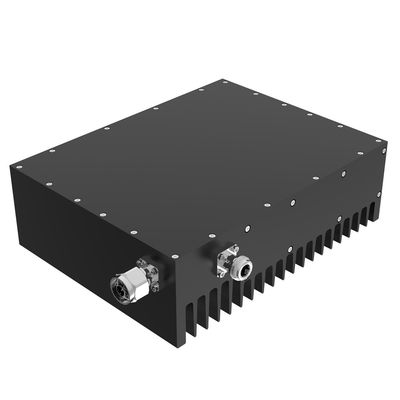

Outdoor Switched Fixed Rf Power Attenuator 100W ROHS 0



RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
