ROHS Certificated Adjustable RF Signal Attenuator 50W IP65

Name: ROHS Certificated Adjustable RF Signal Attenuator 50W IP65
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LPAT-05560-50W-ONx
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPAT-05560-50W-ONx

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, T/T

Supply Ability: 100pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    IP65 rf signal attenuator, 50W rf signal attenuator, ROHS adjustable rf attenuator


Connector:	N Male-N Female	Frequency:	600-6000 MHz ,550-6000MHz
Design:	Coupler+Cable Rolling	PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized	Customized:	Acceptable

Connector:	N Male-N Female
Frequency:	600-6000 MHz ,550-6000MHz
Design:	Coupler+Cable Rolling
PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized
Customized:	Acceptable

Description

ROHS Certificated Adjustable RF Signal Attenuator 50W IP65

600-6000MHz 550-6000MHz N Male To N Female Low PIM -155dbc 160dbc 50W RF Attenuator

Good VSWR
Wide band frequency
High attenuation accuracy

Part Number	VN-LPAT-05560-50W-ONx
Operating Frequency ( MHz )	550-6000 600-6000
Impedance ( Ohm )	50
VSWR	≤1.38
Attenuation (dB)	5 ± 0.9	6 ± 0.9	7 ± 0.9	10 ± 1.1	15 ± 1.5	20 ± 1.5
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Male To N Female
Handling Power (Watt, max)	50
Peak Power (Watt, max)	500
Dimension (mm) (excludes connector)	220× 170× 68
ROHS Compliance	Yes

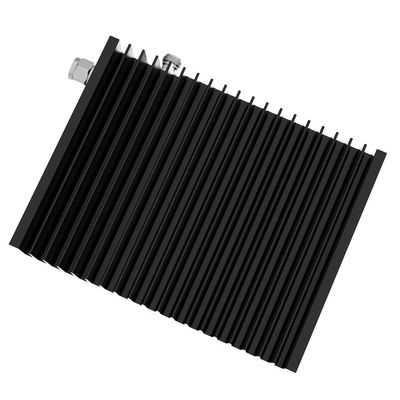

ROHS Certificated Adjustable RF Signal Attenuator 50W IP65 0

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
