Black Step Programmable RF Attenuator 6000MHz -155dbc 50W

Name: Black Step Programmable RF Attenuator 6000MHz -155dbc 50W
Brand: Vinncom
SKU: VN-LPAT-05560-50W-OPx
Rating: 4.8 (153 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPAT-05560-50W-OPx

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, T/T

Supply Ability: 100pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    50W programmable rf attenuator, -155dbc Programmable RF step attenuator, 6000MHz RF step attenuator


Connector:	4.3-10 Male-4.3-10 Female	Frequency:	600-6000 MHz ,550-6000MHz
Design:	Coupler+Cable Rolling	PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized	Customized:	Acceptable

Connector:	4.3-10 Male-4.3-10 Female
Frequency:	600-6000 MHz ,550-6000MHz
Design:	Coupler+Cable Rolling
PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized
Customized:	Acceptable

Description

Black Step Programmable RF Attenuator 6000MHz -155dbc 50W

600-6000MHz 550-6000MHz 4.3-10 Mini DIN Male To 4.3-10 Female Low PIM -155dbc 160dbc 50W RF Attenuator

Wide band frequency
Low PIM
High attenuation accuracy

Part Number	VN-LPAT-05560-50W-OPx
Operating Frequency ( MHz )	550-6000 600-6000
Impedance ( Ohm )	50
VSWR	≤1.38
Attenuation (dB)	5 ± 0.9	6 ± 0.9	7 ± 0.9	10 ± 1.1	15 ± 1.5	20 ± 1.5
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male To 4.3-10 Female
Handling Power (Watt, max)	50
Peak Power (Watt, max)	500
Dimension (mm) (excludes connector)	220× 170× 68
ROHS Compliance	Yes

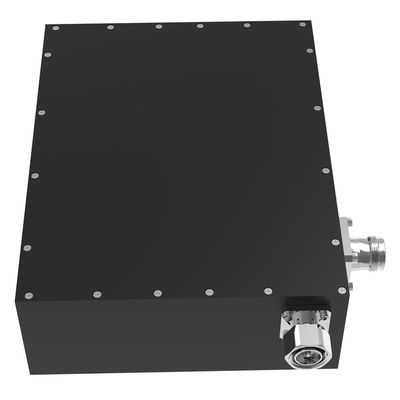

Black Step Programmable RF Attenuator 6000MHz -155dbc 50W 0

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
