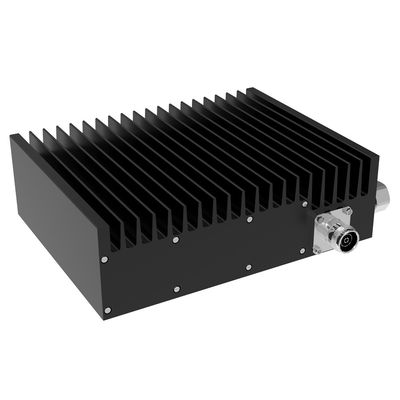

Vinncom Adjustable RF Coaxial Attenuator Coupler Cable Rolling 2700MHz

Name: Vinncom Adjustable RF Coaxial Attenuator Coupler Cable Rolling 2700MHz
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LPAT-05527-50W-OPx
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPAT-05527-50W-OPx

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, T/T

Supply Ability: 100pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Vinncom rf coaxial attenuator, 2700MHz rf coaxial attenuator, Vinncom adjustable rf attenuator


Connector:	4.3-10 Male-4.3-10 Female	Frequency:	600-2700 MHz ,550-2700MHz
Design:	Coupler+Cable Rolling	PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Connector:	4.3-10 Male-4.3-10 Female
Frequency:	600-2700 MHz ,550-2700MHz
Design:	Coupler+Cable Rolling
PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Description

Vinncom Adjustable RF Coaxial Attenuator Coupler Cable Rolling 2700MHz

550-2700MHz 600-2700MHz 50W 4.3-10 Male To 4.3-10 Female Low PIM -155dbc 160dbc 5~30dB RF Coaxial Attenuators

Low PIM up to -153/-163dBc@43dBm*2
Wide band frequency
Good VSWR

Part Number	VN-LPAT-05527-50W-OPx
Operating Frequency ( MHz )	550-2700
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation (dB)	5 ± 0.9	6 ± 0.9	7 ± 0.9	10 ± 1.1	15 ± 1.5	20 ± 1.5
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male To 4.3-10 Female
Handling Power (Watt, max)	50
Peak Power (Watt, max)	500
Dimension (mm) (excludes connector)	220× 170× 68
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
