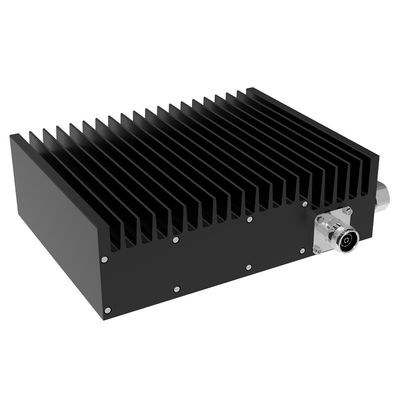

Lightweight Low PIM Attenuator Continuously Variable Attenuator -165dbc
  • name
  • name
  • name
  • name

Lightweight Low PIM Attenuator Continuously Variable Attenuator -165dbc

MOQ: 10
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T, T/T
Supply Capacity: 100pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LPAT-0640-100W-OPx
Connector:
4.3-10 Male-4.3-10 Female
Frequency:
600-4000 MHz ,698-4000MHz
Design:
Coupler+Cable Rolling
PIM:
-165dbc @ 43dbm*2
Color:
Black Or Customized
Highlight:

-165dbc Low PIM Attenuator

,

Continuously Low PIM Attenuator

,

Low PIM continuously variable attenuator

Product Description

600-4000MHz 698-4000MHz 100W 4.3-10 Male To 4.3-10 Female Low PIM -155dbc 160dbc  5~40dB RF Coaxial Attenuators



  • Good VSWR
  • Low PIM
  • High attenuation accuracy



Part Number VN-LPAT-0640-100W-OPx
Operating Frequency ( MHz ) 600-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Attenuation (dB) 5 6 7 8 10 12 15 20
Tolerance (dB) ± 0.9 ± 0.9 ± 0.9 ± 0.9 ± 1.2 ± 1.5 ± 1.5 ± 1.5
IM3 (dBc @ 2×43dBm) -153 / -163
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Male to 4.3-10 Female
Handling Power (Watt, max) 100
Peak Power (Watt, max) 800
   Dimension (mm)(L×W×H, excl connector)    220×170× 68
ROHS Compliance Yes



Lightweight Low PIM Attenuator Continuously Variable Attenuator -165dbc 0



RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
