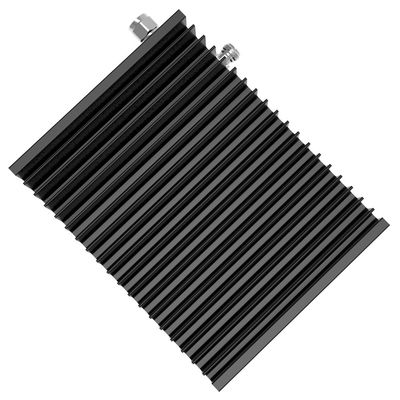

Continuously Variable Digital RF Signal Attenuator 4000MHz 50W
  • name
  • name
  • name
  • name

Continuously Variable Digital RF Signal Attenuator 4000MHz 50W

MOQ: 10
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T, T/T
Supply Capacity: 100pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LPAT-0640-50W-ONx
Connector:
N Male-N Female
Frequency:
600-4000 MHz ,698-4000MHz
Design:
Coupler+Cable Rolling
PIM:
-165dbc @ 43dbm*2
Color:
Black Or Customized
Highlight:

continuously variable rf attenuator

,

4000MHz variable rf attenuator

,

Variable rf digital step attenuator

Product Description



600-4000MHz 698-4000MHz 100W N Male To N Female Low PIM -155dbc 160dbc  5~40dB RF Coaxial Attenuators



  • Low PIM up to -153/-163dBc@43dBm*2
  • Wide band frequency
  • High indicator stability



Part Number VN-LPAT-0640-50W-ONx
Operating Frequency ( MHz ) 600-4000
Impedance ( Ohm ) 50
VSWR ≤1.30
Attenuation (dB) 5 6 7 8 10 12 15 20
Tolerance (dB) ± 0.9 ± 0.9 ± 0.9 ± 0.9 ± 1.2 ± 1.5 ± 1.5 ± 1.5
IM3 (dBc @ 2×43dBm) -153 / -163
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male to N Female
Handling Power (Watt, max) 50
Peak Power (Watt, max) 500
   Dimension (mm)(L×W×H, excl connector)    220*170*68
ROHS Compliance Yes



Continuously Variable Digital RF Signal Attenuator 4000MHz 50W 0



RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.



Tags:

high power rf attenuator,

wideband attenuator,

rf step attenuator
