ODM Variable RF Attenuator ROHS IP65 3800MHz

Name: ODM Variable RF Attenuator ROHS IP65 3800MHz
Brand: Vinncom
SKU: VN-LPAT-0738-100W-ONx
Rating: 4.5 (126 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPAT-0738-100W-ONx

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, T/T

Supply Ability: 100pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            3800MHz  variable attenuator, 3800MHz variable rf attenuator, ODM variable rf attenuator


Connector:	N Male-N Female	Frequency:	617-3800 MHz ,698-3800MHz
Design:	Coupler+Cable Rolling	PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Connector:	N Male-N Female
Frequency:	617-3800 MHz ,698-3800MHz
Design:	Coupler+Cable Rolling
PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Description

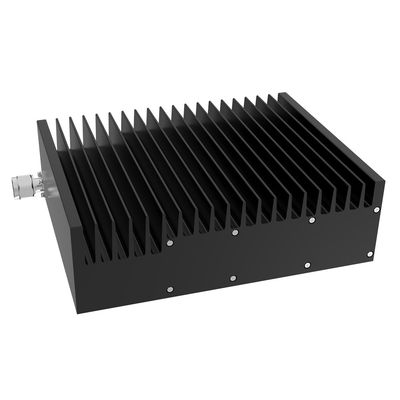

ODM Variable RF Attenuator ROHS IP65 3800MHz

617-3800MHz 698-3800MHz 100W -155dbc 160dbc N Male To N Female Low PIM RF Attenuator

Low PIM up to -155/-163dBc@43dBm*2
Wide band frequency
Good VSWR

Part Number	VN-LPAT-0738-100W-ONx
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation(dB)	5 ± 0.8	6 ± 0.8	7 ± 0.9	10 ± 1.0	15 ± 1	20 ± 1.2	30 ± 1.5
IM3 (dBc @2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Male To N Female
Handling Power (Watt, max)	100
Peak Power (Watt, max)	800
Dimension (mm)	220 × 170 × 68 (excludes connector)
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
