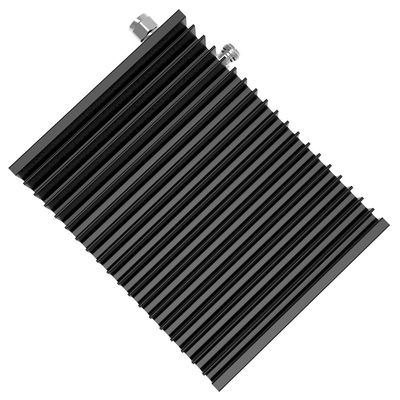

Switchable RF Circuit Low PIM Attenuator 20db -160dbc

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

Switchable RF Circuit Low PIM Attenuator 20db -160dbc

MOQ:	10
Price:	Negotiable
Payment Method:	L/C, D/A, D/P, T/T, T/T
Supply Capacity:	100pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Vinncom

Certification

ROHS ISO9000

Model Number

VN-LPAT-738-50W-ONx

Connector:

N Male-N Female

Frequency:

698-3800 MHz ,617-3800MHz

Design:

Coupler+Cable Rolling

-165dbc @ 43dbm*2

Color:

Black Or Customized

Highlight:

20db Low PIM Attenuator

switchable Low PIM Attenuator

-160dbc 20db Attenuator

Product Description

698-3800MHz 617-3800MHz 50W N Male To N Female Low PIM -155dbc 160dbc RF Attenuator

Wide band frequency
Low PIM
High attenuation accuracy

Part Number	VN-LPAT-0738-50W-ONx
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation(dB)	5 ± 0.8	6 ± 0.8	7 ± 0.9	10 ± 1.0	15 ± 1	20 ± 1.2	30 ± 1.5
IM3 (dBc @2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Male To N Female
Handling Power (Watt, max)	50
Peak Power (Watt, max)	500
Dimension (mm)	220 × 170 × 68 (excludes connector)
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
