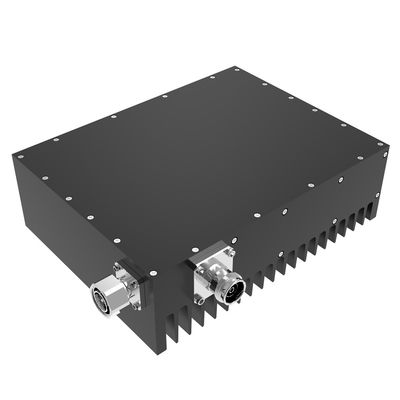

ISO9000 Step Fixed RF Attenuator 50Ohm 160dbc Customized

Name: ISO9000 Step Fixed RF Attenuator 50Ohm 160dbc Customized
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LPAT-738-100W-OPx
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPAT-738-100W-OPx

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, T/T

Supply Ability: 100pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            160dbc fixed rf attenuator, Bidirectional fixed rf attenuator, 50Ohm rf step attenuator


Connector:	4.3-10 Male-4.3-10 Female	Frequency:	617-3800 MHz ,698-3800MHz
Design:	Coupler+Cable Rolling	PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Connector:	4.3-10 Male-4.3-10 Female
Frequency:	617-3800 MHz ,698-3800MHz
Design:	Coupler+Cable Rolling
PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Description

ISO9000 Step Fixed RF Attenuator 50Ohm 160dbc Customized

617-3800MHz 698-3800MHz 100W 4.3-10 Male To 4.3-10 Female Low PIM -155dbc 160dbc 5~40dB RF Coaxial Attenuators

Wide band frequency
Good VSWR
High attenuation accuracy

Part Number	VN-LPAT-0738-100W-OPx
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation(dB)	5 ± 0.8	6 ± 0.8	7 ± 0.9	10 ± 1.0	15 ± 1	20 ± 1.2	30 ± 1.5
IM3 (dBc @2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male To 4.3-10 Female
Handling Power (Watt, max)	100
Peak Power (Watt, max)	800
Dimension (mm)	220 × 170 × 68 (excludes connector)
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
