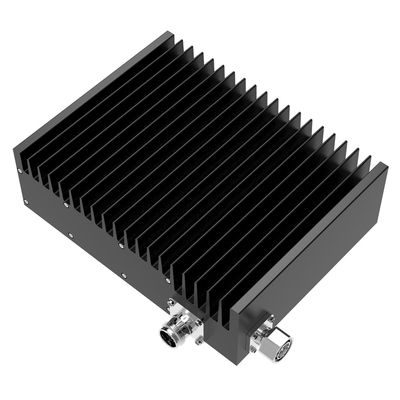

RF Power Syetems Low PIM Attenuator 3800mhz Variable Frequency

Name: RF Power Syetems Low PIM Attenuator 3800mhz Variable Frequency
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LPAT-0738-50W-OPx
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LPAT-0738-50W-OPx

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, T/T

Supply Ability: 100pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            3800mhz Low PIM Attenuator, RF Low PIM Attenuator, 3800mhz RF power Attenuator


Connector:	4.3-10 Male-4.3-10 Female	Frequency:	698-4000 MHz ,617-4000MHz
Design:	Coupler+Cable Rolling	PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Connector:	4.3-10 Male-4.3-10 Female
Frequency:	698-4000 MHz ,617-4000MHz
Design:	Coupler+Cable Rolling
PIM:	-165dbc @ 43dbm*2
Color:	Black Or Customized

Description

RF Power Syetems Low PIM Attenuator 3800mhz Variable Frequency

698-3800MHz 617-3800MHz 100W 4.3-10 Male To 4.3-10 Female Low PIM -155dbc 160dbc 5~40dB RF Coaxial Attenuators

High attenuation accuracy
Low PIM up to -155/-163dBc@43dBm*2
Good VSWR

Part Number	VN-LPAT-0738-50W-OPx
Operating Frequency ( MHz )	698-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Attenuation(dB)	5 ± 0.8	6 ± 0.8	7 ± 0.9	10 ± 1.0	15 ± 1	20 ± 1.2	30 ± 1.5
IM3 (dBc @2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male To 4.3-10 Female
Handling Power (Watt, max)	50
Peak Power (Watt, max)	500
Dimension (mm)	220 × 170 × 68 (excludes connector)
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
