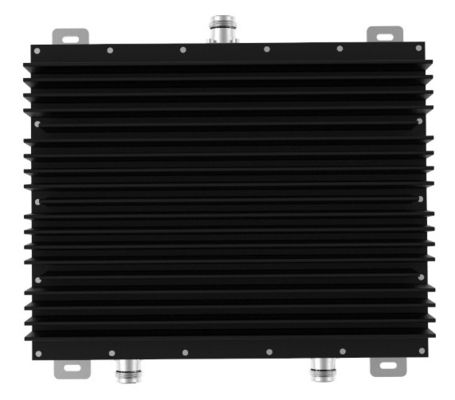

340-2700MHz 2in 1out Hybrid Coupler / 2:1 Combiner
  • name

340-2700MHz 2in 1out Hybrid Coupler / 2:1 Combiner

MOQ: 5 PCS
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-HC2x1-03427-300W-OP-161
Highlight:

Hybrid Coupler RF Antenna Combiner

,

50ohm RF Antenna Combiner

,

IP65 Hybrid Coupler Combiner

Product Description

380-3800MHz 2in 1out Hybrid Coupler / 2:1 Combiner



  • Good VSWR at all ports
  • High isolation
  • Portable for installation



                                                                                                                                                       ​VN-HC2x1-03427-300W-OP-161.pdf

Part Number

VN-HC2x1-03427-300W-OP-161
Operating Frequency ( MHz ) 340-2700
Impedance ( Ohm ) 50
VSWR 1.25
Insertion Loss (dB) ≤4.0
Isolation (dB) 18
IM3 (dBc @ 2×43dBm)@xxx -150/-155/-161/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Dimension (mm)(L×W×H, excl connector) 270*215*105
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
ROHS Compliance Yes









340-2700MHz 2in 1out Hybrid Coupler / 2:1 Combiner 0
Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
