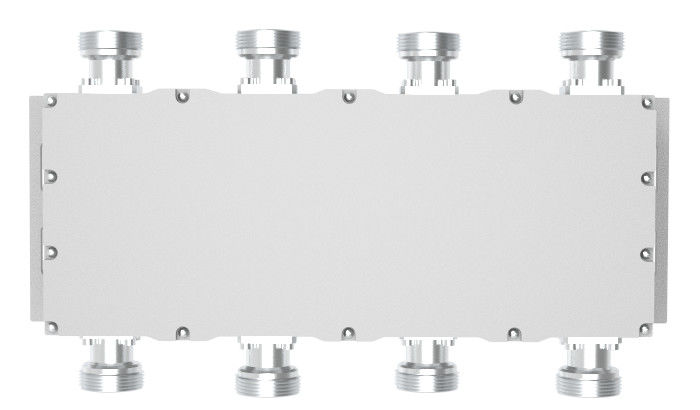

380-3800MHz Hybrid Coupler / 4:4 Combiner
  • name

380-3800MHz Hybrid Coupler / 4:4 Combiner

MOQ: 5pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-HC4X4-03838-OP-xxx
Color:
Gray
Connector Type:
4.3-10 Female
Frequency Range:
380-3800MHz
Impedance:
50Ω
Insertion Loss:
6.2±1.4 DB
Isolation:
≥19dB
Material:
Aluminum Alloy
Operating Temperature:
-40℃~+85℃
Power Handling:
500W
Product Name:
RF Antenna Combiner
Size:
293.2X109X6mm
Storage Temperature:
-40℃~+85℃
VSWR:
≤1.3
Highlight:

Outdoor Aluminum Alloy RF Antenna Combiner

,

3800MHz Hybrid Coupler Combiner

,

RF Antenna Hybrid Coupler Combiner

Product Description

380-3800MHz Hybrid Coupler / 4:4 Combiner



  • Good Flatness
  • Good VSWR at all ports
  • Good PIM



                                                                                                                                                       VN-HC4X4-03838-500W-OP-xxx.pdf

Part Number VN-HC4X4-03838-OP-xxx
Operating Frequency ( GHz ) 380-3800
Impedance ( Ohm ) 50
VSWR ≤1.30
Isolation(dB) 19
Insertion Loss(dB) 6.2±1.4
IM3 (dBc @ 2×34dBm) -150/-155/-160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power(Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 293.2X109X68
Net Weight (g) 3225 ± 10
Packing Dimensions (mm,L×W×H) 325X180X100
Packing Carton Size (mm,L×W×H) 560X340X220
ROHS Compliance Yes







380-3800MHz Hybrid Coupler / 4:4 Combiner 0380-3800MHz Hybrid Coupler / 4:4 Combiner 1





Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
