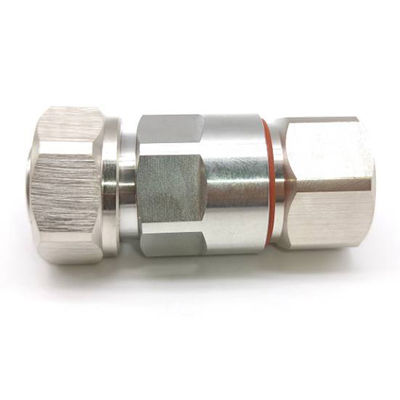

Name: Connector 4.3-10M For 1/2 Supwe Flex Cable
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-CON-4310M-12SF
Price: 414.00 USD
Availability: InStock

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	depends on your quantity
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-CON-4310M-12SF

Frequency Range:

DC-4GHz

PIM3:

≤-160dBc

Insertion Loss:

≤0.15

Durability:

Mating Cycles ≥100 Cycles

Temperature Range:

-40℃～+85℃

Watertightness:

IP67

VSWR:

≤1.10

Highlight:

1/2 Supwe Flex Cable

4.3M Supwe Flex Cable

10M Supwe Flex Cable

Product Description

Connector 4.3-10M For 1/2 Supwe Flex Cable

Low PIM up to -160dBc@43dBm*2
Wide band frequency
Good VSWR

SPECIFICATION
4.3/10 Male Straight for 1/2＂super flex cable
imensions are in millimeters
Interface
According to			IEC 61169-54
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-4GHz
VSWR			1.10
PIM3			≤-160dBc
Insertion Loss			≤0.15dB
Dielectric Withstanding Voltage			≥2500V RMS,50Hz,at sea level
Dielectric Resistance			≥5000MΩ
Contact Resistance			Center Contact ≤1.0mΩ
			Outer Contact ≤1.0mΩ
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor Other	Phosphor bronze Brass			Ag Ni
Environmental
Temperature Range		-40℃～+85℃
Watertightness		IP67
Rosh-compliance		Full ROHS compliance
Salt-fog test		96h
