Adapter N female To 4.3-10 female

Name: Adapter N female To 4.3-10 female
Brand: Vinncom
SKU: VN-ADR-NF-4310F
Rating: 4.9 (125 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-ADR-NF-4310F

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    4.3-10 female Adapter, 50 Ohm RF Connector Adapter


Frequency Range:	DC-6GHz	Characteristic Impedance:	50
Insertion Loss:	≤0.05	Dielectric Resistance:	≥5000MΩ
Temperature Range:	-40℃～+85℃	VSWR:	≤1.10@6G
Dielectric Withstanding Voltage:	≥2500V RMS,50Hz,at Sea Level	PIM ( @2-tonex20w):	≤-160dBc

Frequency Range:	DC-6GHz
Characteristic Impedance:	50
Insertion Loss:	≤0.05
Dielectric Resistance:	≥5000MΩ
Temperature Range:	-40℃～+85℃
VSWR:	≤1.10@6G
Dielectric Withstanding Voltage:	≥2500V RMS,50Hz,at Sea Level
PIM ( @2-tonex20w):	≤-160dBc

Description

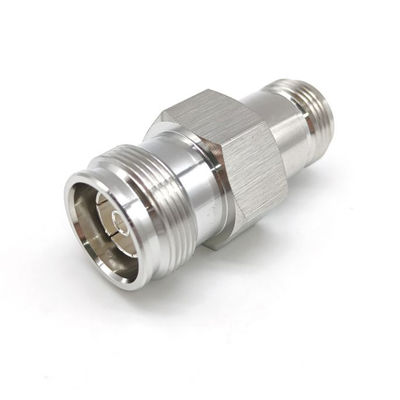

Adapter N female To 4.3-10 female

Adapter N female To 4.3-10 female

Low PIM up to -160dBc@43dBm*2
Wide band frequency
Good VSWR

SPECIFICATION
Dimensions are in millimeters
Interface
According to			IEC 61169-16
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-6GHz
VSWR			≤1.10@6G
PIM ( @2-tonex20w)			≤-160dBc
Dielectric Withstanding Voltage			≥2500V RMS,50Hz,at sea level
Dielectric Resistance			≥5000MΩ
Insert Loss			≤0.05dB
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor Barrel	Beryllium Brass			Ag Ni
Environmental
Temperature Range		-40℃～+85℃
Rosh-compliance		Full ROHS compliance
Salt-fog test		96h

Adapter N female To 4.3-10 female 0
