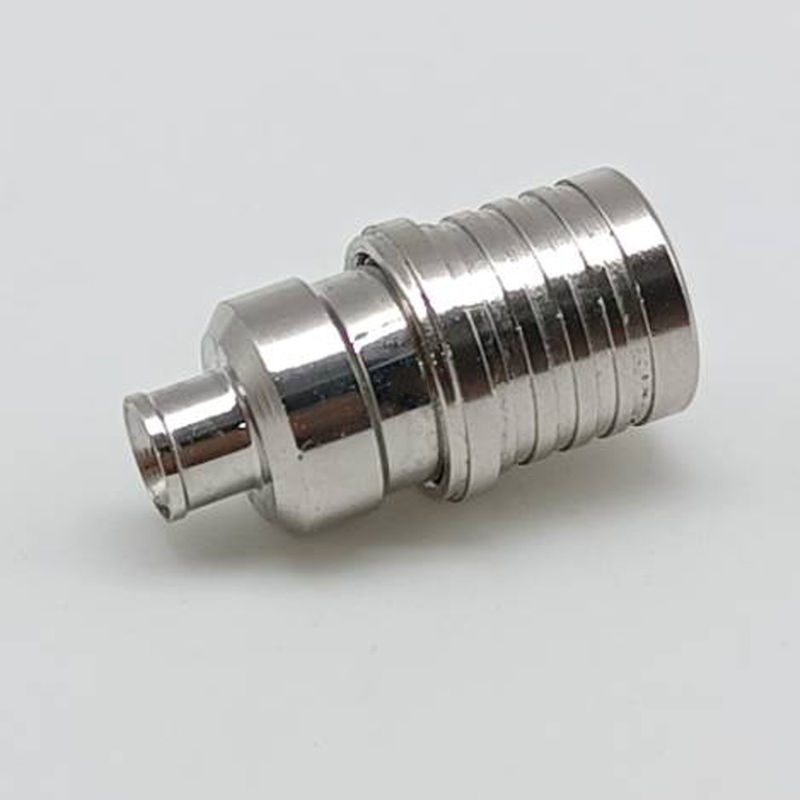

Name: Connector QMA-M For RG-402 Feeder Cable
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-CON-QMAM-RG402
Price: 414.00 USD
Availability: InStock

MOQ:	5pcs
Price:	negotiation
Standard Packaging:	foam+box
Delivery Period:	depends on your quantity
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	50pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-CON-QMAM-RG402

Frequency Range:

DC-3GHz

Characteristic Impedance:

Insertion Loss:

≤1.15

Dielectric Resistance:

≥1000MΩ

Temperature Range:

-40℃～+85℃

Durability:

Durability

Dielectric Withstanding Voltage:

≥1000V RMS,50Hz,at Sea Leve

Highlight:

QMA-M Feeder Cable Connector

RG-402 Feeder Cable Connector

Product Description

Connector QMA-M For RG-402 Feeder Cable

Wide band frequency
Good VSWR
Made by Brass

SPECIFICATION
QMA Male solder type for RG402 Cable
Dimensions are in millimeters
Interface
According to			QLF(QMA)
Electrical
Characteristic Impedance			50 ohm
Frequency Range			DC-3GHz
VSWR			≤1.15
Dielectric Withstanding Voltage			≥1000V RMS,50Hz,at sea level
Dielectric Resistance			≥1000MΩ
Contact Resistance			Center Contact ≤3.0mΩ
			Outer Contact ≤2.5mΩ
Mechanical
Durability			Mating cycles ≥100 cycles
Material and plating
	Material			plating
Body	Brass			Tri-Alloy
Insulator	PTFE			-
Center conductor Other	Brass Brass			Au Ni
Environmental
Temperature Range		-40℃～+85℃
Rosh-compliance		Full ROHS compliance
Salt-fog test		96h

Connector QMA-M For RG-402 Feeder Cable 0
